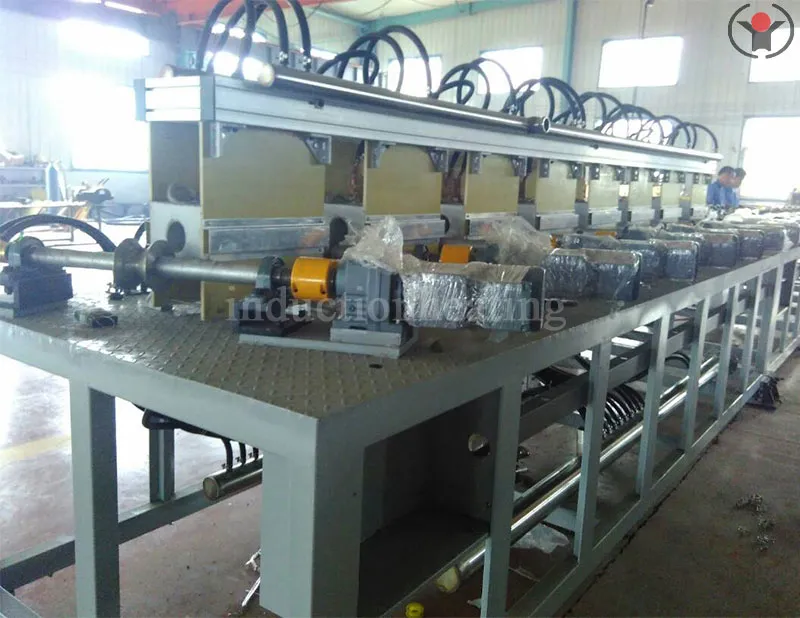

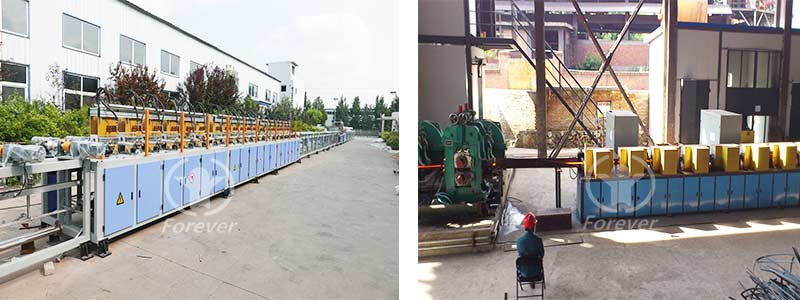

Thread rod induction hardening and tempering furnace

● Raw material: M2 high-speed steel, 11Cr17 martensitic stainless steel, threaded steel bars, etc.

Power supply system: 1000-5000KW, frequency 2.5KHz-15KHz, specifications Φ 12- Φ 32, hourly output 2.5-15 tons.

● Sensor design: variable pitch, temperature gradient design, higher efficiency.

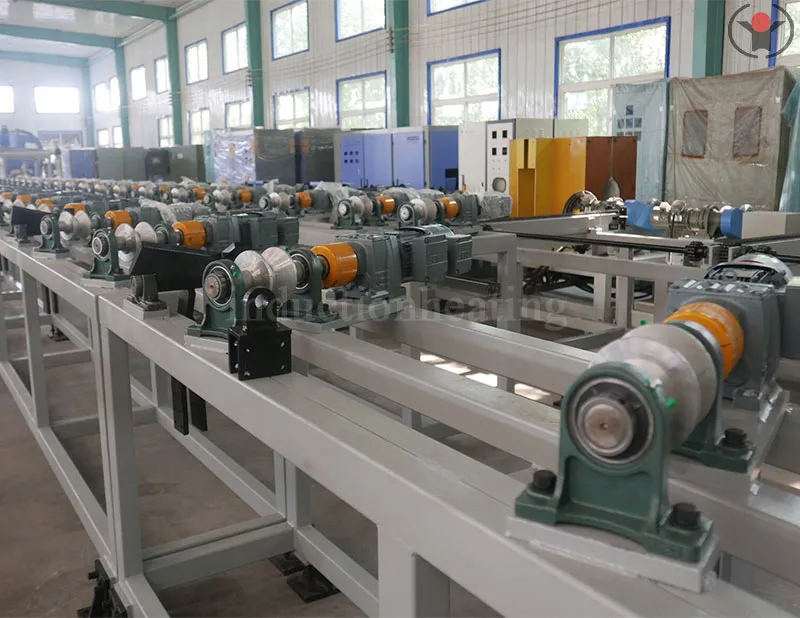

Elastic adjustable pressure roller: enables uniform feeding of threaded steel bars of different diameters. The roller conveyor and pressure roller between the furnace bodies are made of 304 non-magnetic stainless steel and water-cooled.

Infrared temperature measurement: Install an infrared temperature measurement device at the discharge end to ensure consistent temperature of the threaded steel bars before entering the rolling mill.

▲ Energy conversion: Heating to 1200 ℃, consuming 320-360 degrees per ton of electricity.

Thread bar induction hardening and tempering furnace has high heating efficiency, fast production and processing speed, and reduces processing time;

The heating workpiece is processed in a closed manner, which is less affected by climate and environmental conditions, improving the working conditions of workers, and preventing impurities from being transported into the heating furnace. The equipment is safe and the quality of the heated workpiece is guaranteed;

The equipment is simple, the structure is compact, the production process is flexible, the occupied area is small, and the operation of the hot rolling heating furnace for threaded steel bars is easy;

Easy to achieve centralized control and automation of the entire threaded steel bar hot rolling heating equipment system;

The advantages of no dust, no waste smoke, no exhaust gas, and good working environment have gradually been promoted and applied, especially in recent years when the country advocates energy conservation and environmental protection, the advantages of hot-rolled threaded steel heating furnaces are becoming increasingly apparent.

If you are also interested in this machine,please don’t hesitate to contact us:

Overseas manager: Tom Wang

Email:tom@foreverfurnace.com

Phone/Wechat/Whatsapp:+86 13303078975
