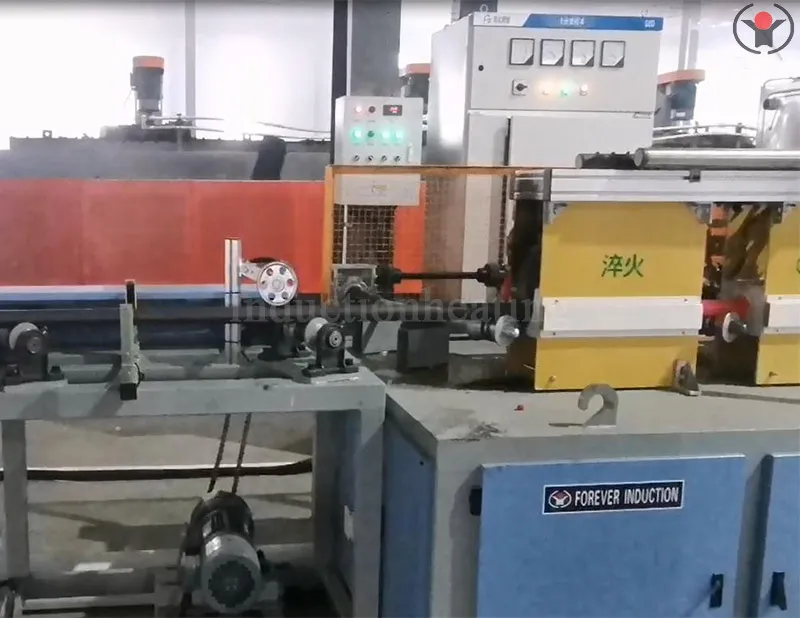

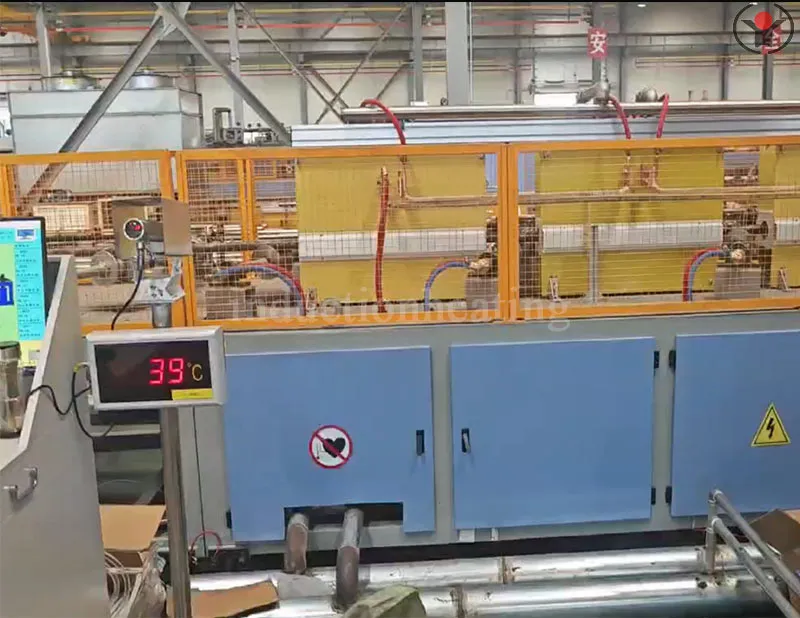

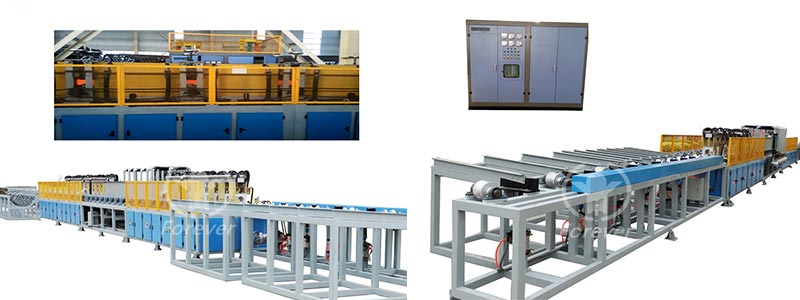

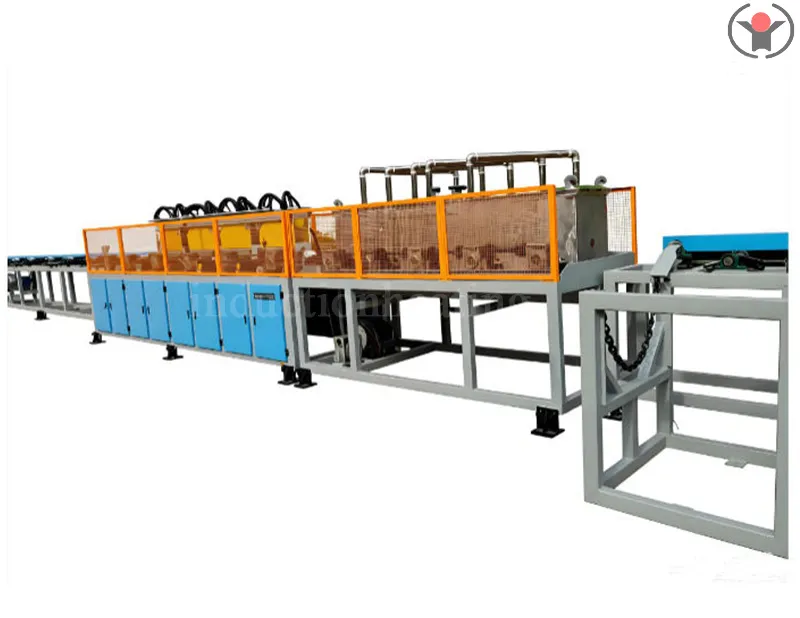

Round bar induction hardening and tempering equipment
Round bar induction hardening and tempering equipment brand: Forever Electromechanical
Non standard customization: Yes
Application scope: Steel bars, stainless steel bars, wear-resistant steel bars
Power range: 100KW-8000KW Frequency range: 500Hz-10KHz
Scope of use: Diameter 15mm-150mm
Payment method: 30% down payment, balance to be paid upon delivery
Process flow of Round bar induction hardening and tempering equipment:
Storage mechanism → Roller conveyor system → Induction heating system → Quenching cooling system → Tempering insulation system → Infrared temperature measurement system → Roller conveyor output system → Receiving mechanism
Advantages and characteristics of round bar induction hardening and tempering equipment

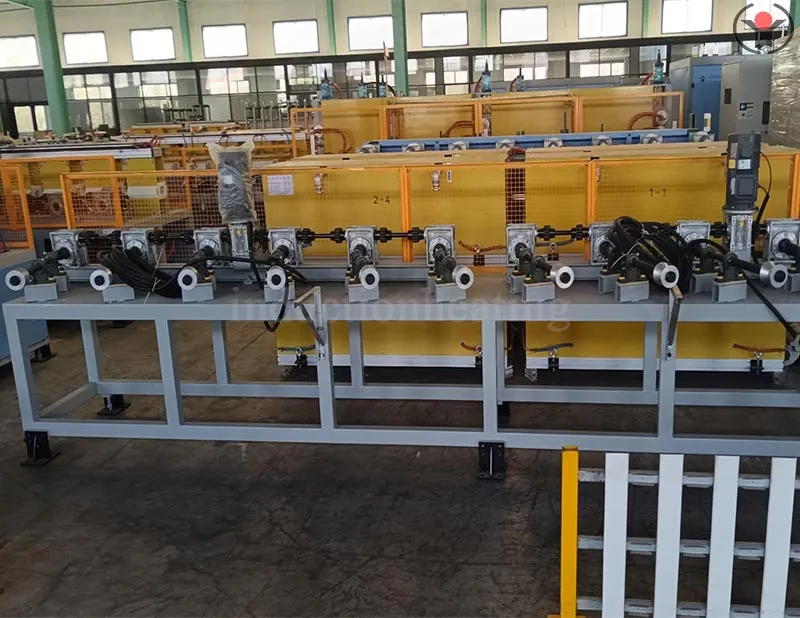

The round bar hardening and tempering heat treatment line we designed adopts V-shaped rollers arranged diagonally in the transmission design to reduce radial runout. By using pressure jet cooling technology to generate self rotating motion of the workpiece, it has good penetration and high cooling efficiency.

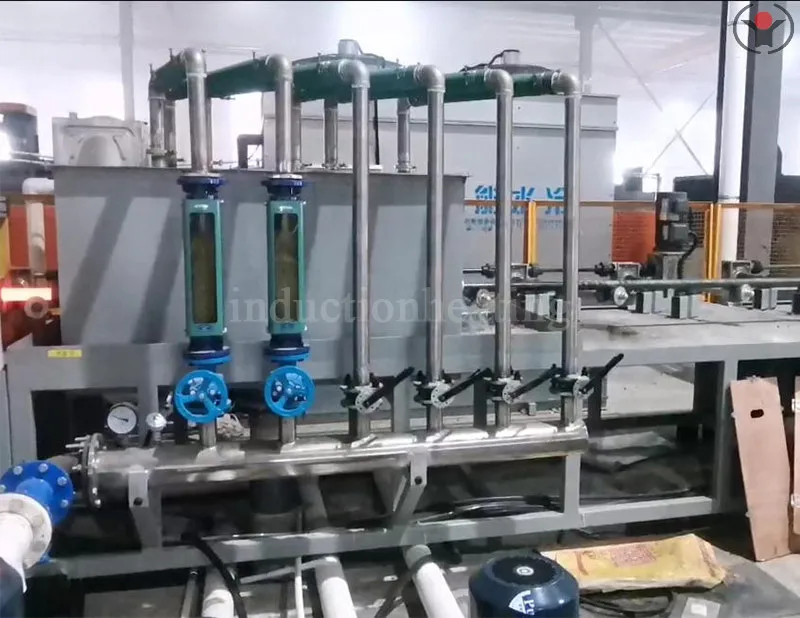

During the hardening process, in the water spray cooling stage, the cooling water is sprayed from the annular water spray device and converges on the surface of the workpiece, with a maximum water pressure of 0.3 MPa. This greatly improves the hardening efficiency and product quality, and is beneficial for improving the strength and toughness after tempering.
The control of the entire production line adopts PLC and human-computer interaction system, and the transmission adopts frequency conversion to schedule and adjust the entire production line, with high control accuracy, wide adjustment range, and smoother operation.
Induction heat treatment furnace case
