Steel ball hot rolling-forging machine

Hebei Forever Electromechanical Equipment Manufacturing Co., Ltd. is a physical enterprise specializing in the research and development, design, manufacturing, sales, and service of steel ball hot rolling heating furnaces. Forever Electromechanical Steel Ball Rolling Heating Furnace realizes automation and mechanization production, reducing labor intensity for workers. Welcome to Hebei Forever Electromechanical Equipment. We provide you with a constructive technical solution for steel ball continuous rolling heating production line.

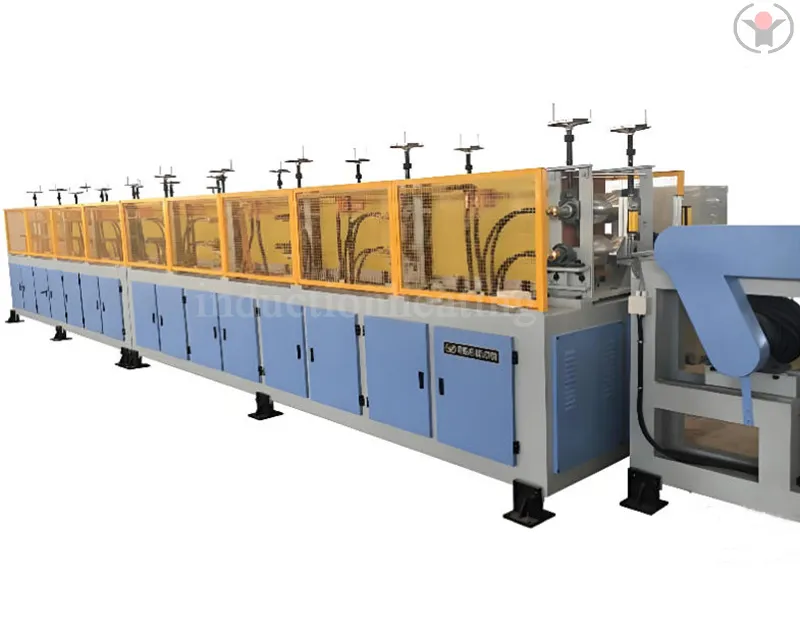

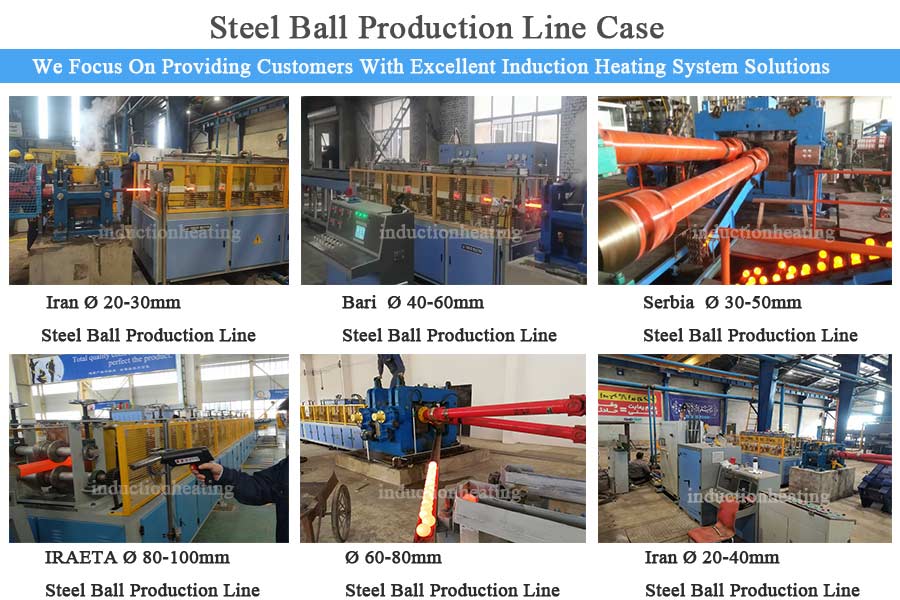

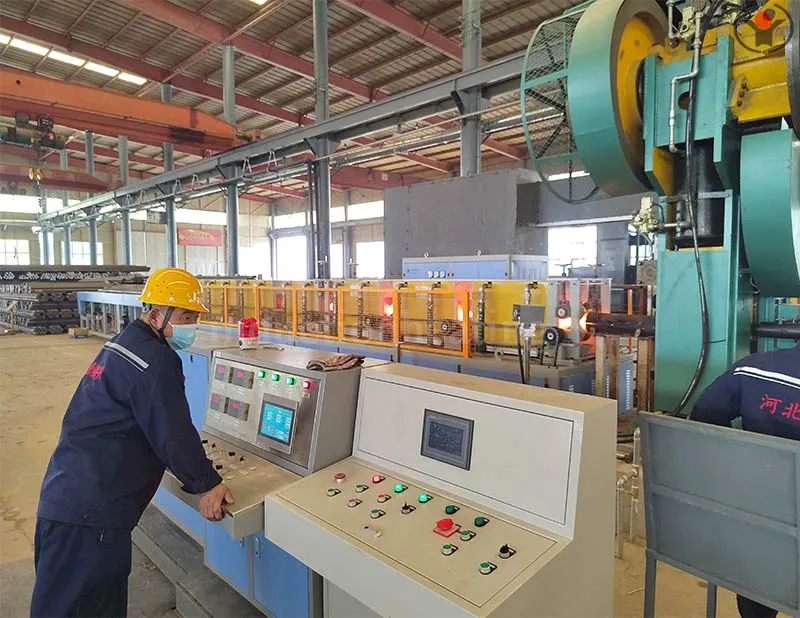

Forever Electromechanical can produce power ranging from 160KW to 8000KW, with a heating diameter of 20150 and unlimited steel rod length. According to customer needs, it can achieve PLC closed-loop control of intermediate frequency heat transfer furnaces. This steel ball continuous rolling heating furnace is a 25-125 steel ball hot rolling heating production line customized and produced by Forever Electromechanical for a customer in Shandong.

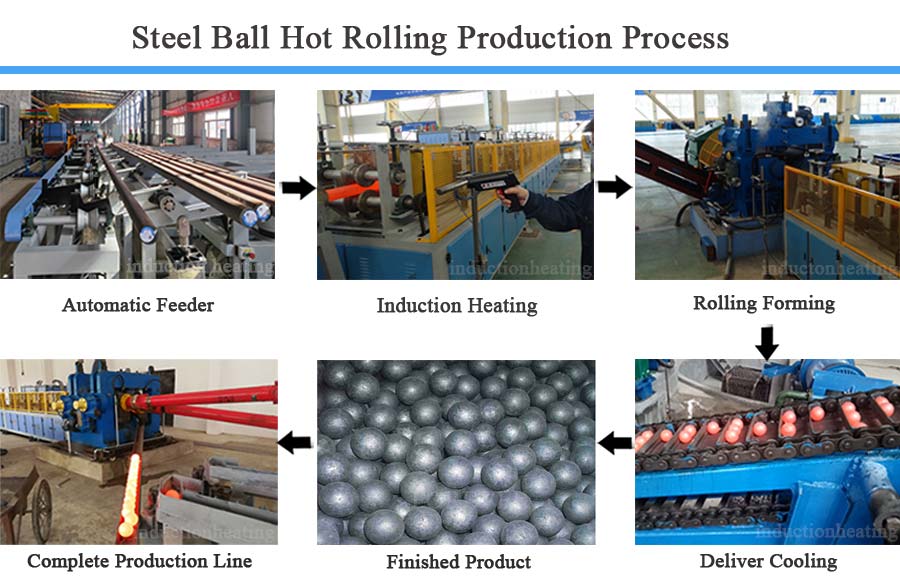

1. After inspection, round steel bars are cut into steel ball blanks (usually 6000mm) according to a fixed length.

2. The steel ball billet is heated to a suitable temperature in the steel ball production line before rolling.

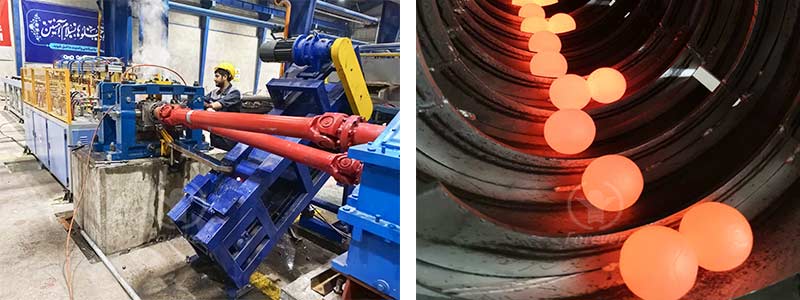

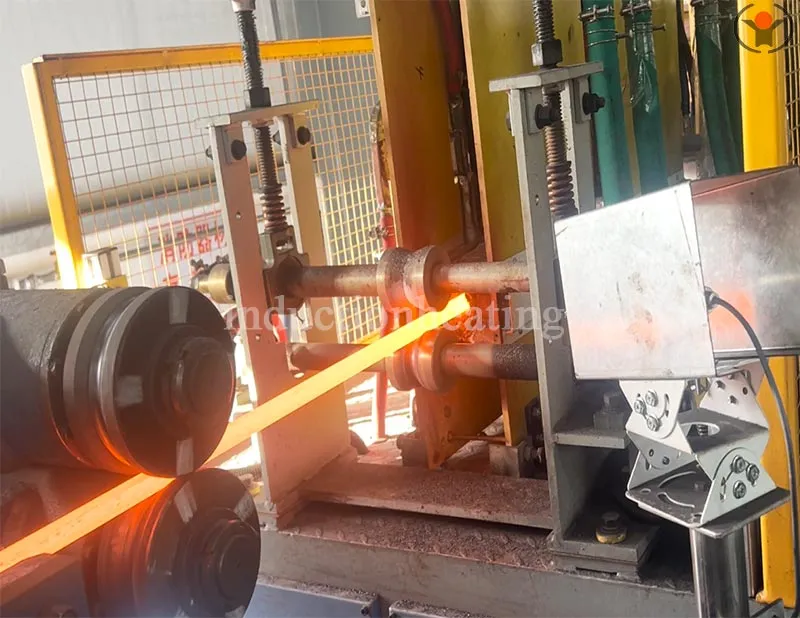

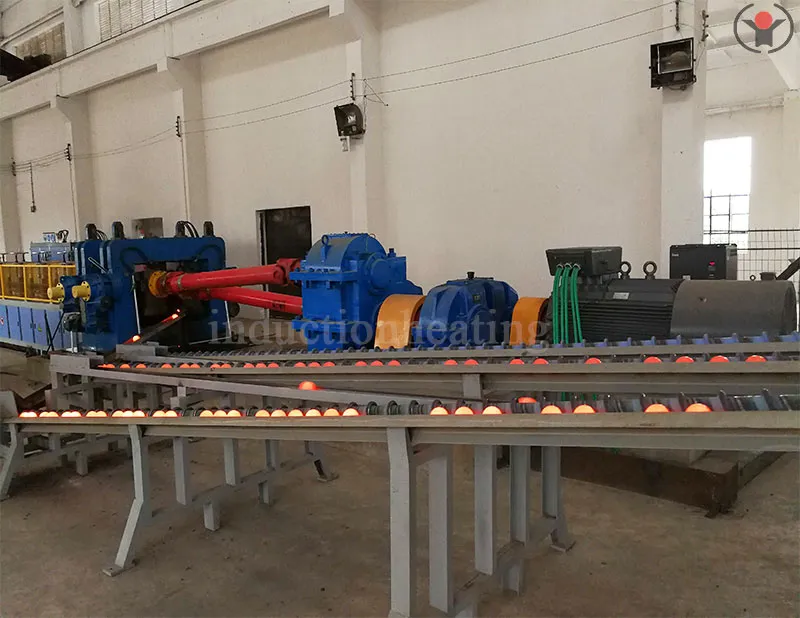

3. After being fed into the steel ball rolling mill, the red hot steel billet rotates and advances between two rolls with special spiral hole patterns, and is continuously rolled into steel balls.

4. When the red hot steel balls are cooled to the quenching temperature after rolling, they immediately enter the online steel ball continuous rolling heating furnace for quenching. The steel balls are collected and cooled in the steel ball collection box, and tempered in the offline trolley type resistance furnace, so that the steel balls obtain high and uniform hardness.

5. The products that have passed the inspection are sent to the finished product warehouse, packaged, and then sent to the customer.

If you are also interested in this machine,please don’t hesitate to contact us:

Overseas manager: Tom Wang

Email:tom@foreverfurnace.com

Phone/Wechat/Whatsapp:+86 13303078975
