Product Details

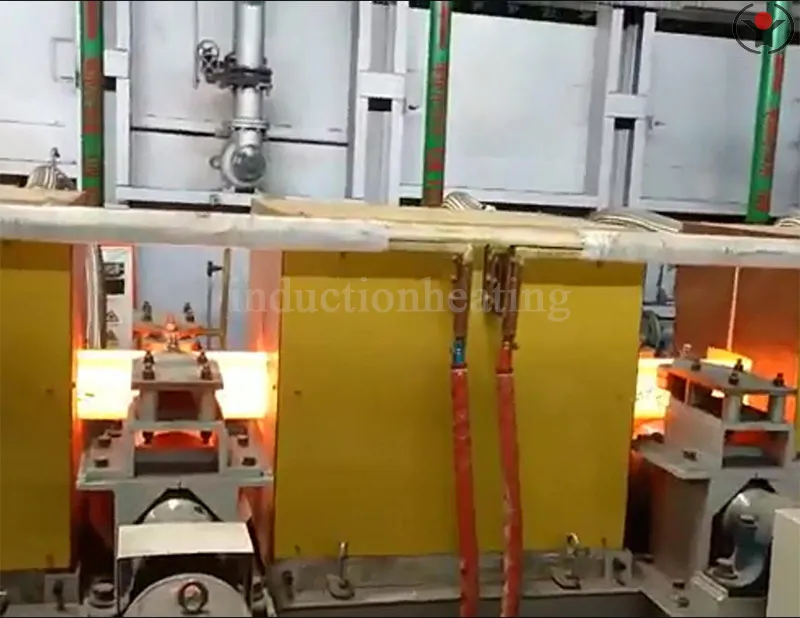

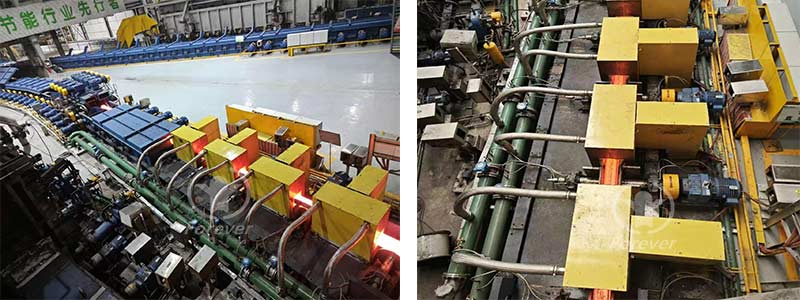

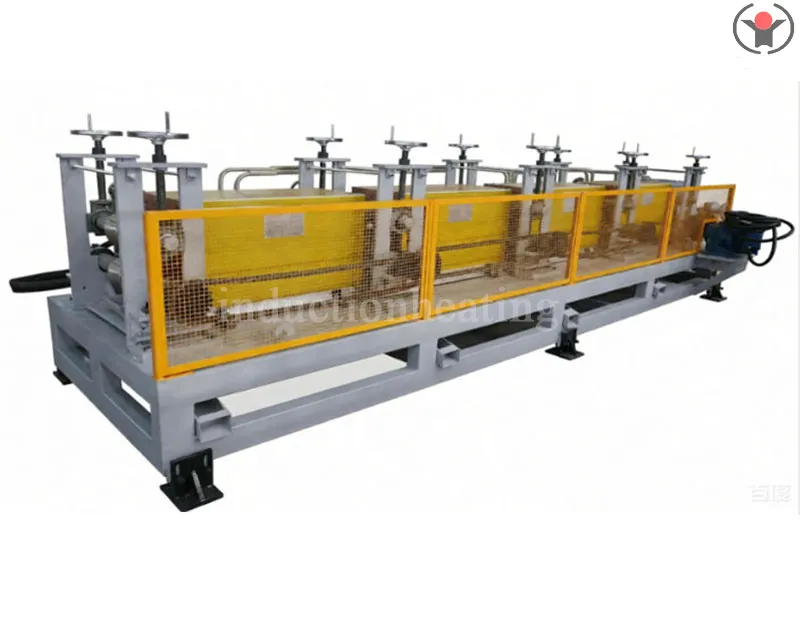

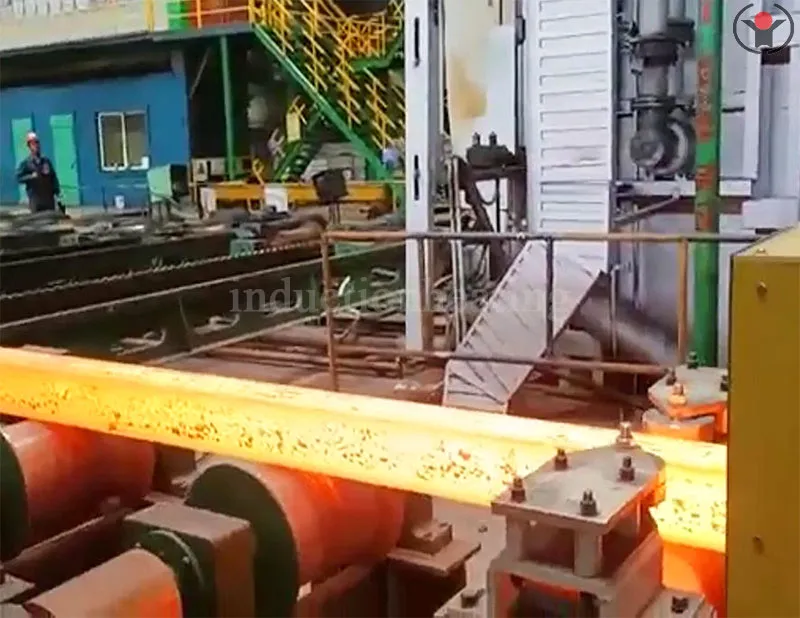

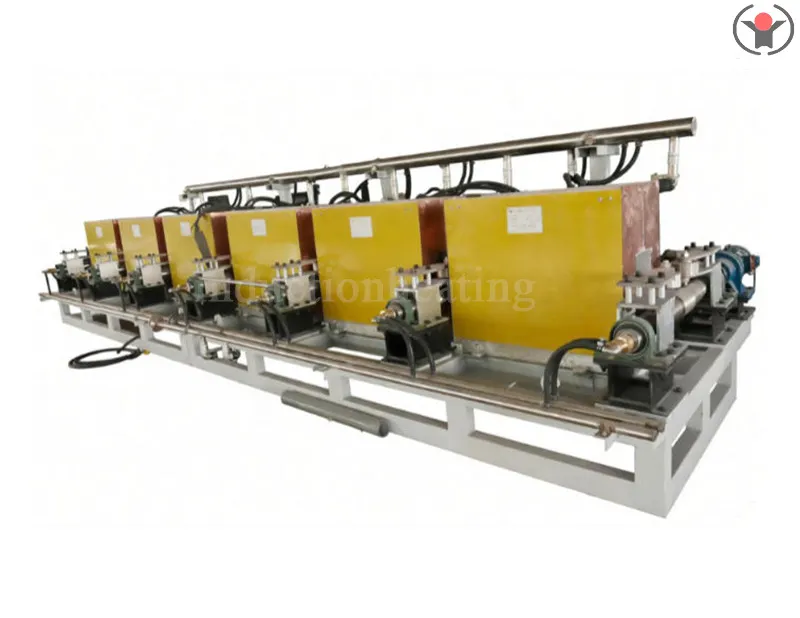

Continuous casting and rolling billet heating machine
Equipment power:1000KW-12000KW
Device Frequency:500HZ-1200Hz
Production capacity: 40-300t/h
Workpiece size: 120mm-160mm square billet, length 3000mm-12000mm
Applicable workpieces: steel billet, square billet, square steel
Energy Conversion: Depending on the surface temperature of the steel billet, the power consumption per ton of steel is 40-60 degrees.
Technical parameters
Technical parameters of steel billet continuous casting and rolling heating furnace:
Equipment brand: Forever Electromechanical
Equipment name: automatic billet induction heating system
Steel material: Q235q, Q345q, Q245R, A32, D32, A36, D36, etc. Steel billet size range: (6mm * 6mm) - (500 * 500mm) Steel billet length range: 2 meters or more
configuration
Heating furnace configuration for continuous casting and rolling of steel billets:
1.medium frequency induction heating power supply
2. Induction heating system
3. Storage platform and automatic feeding device for pinch rollers
4. Quick discharge device for pinch roller
5. American Leitai dual color infrared temperature measurement system
6. Power transformer (optional according to customer's actual needs)
7. Capacitor (optional according to customer's actual needs)
8. Human machine interface PLC main operation console
9. Closed cooling tower

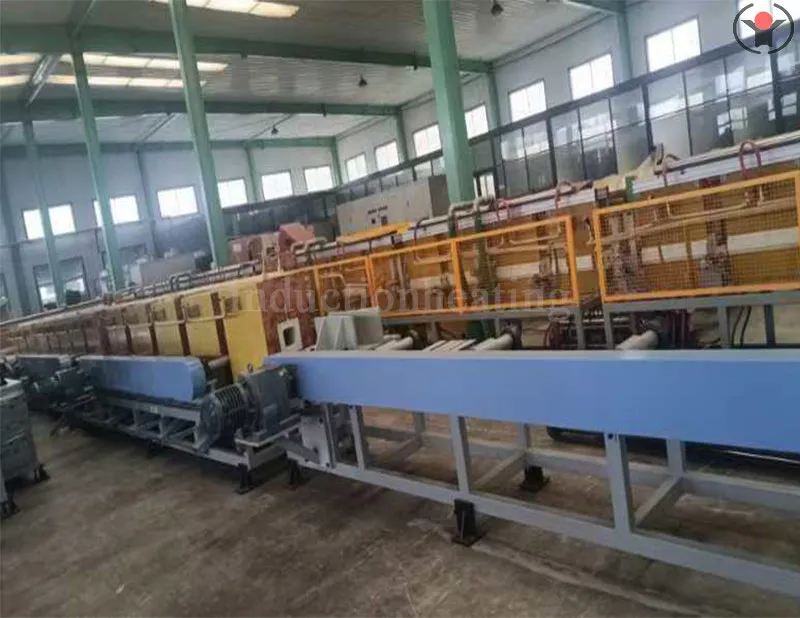

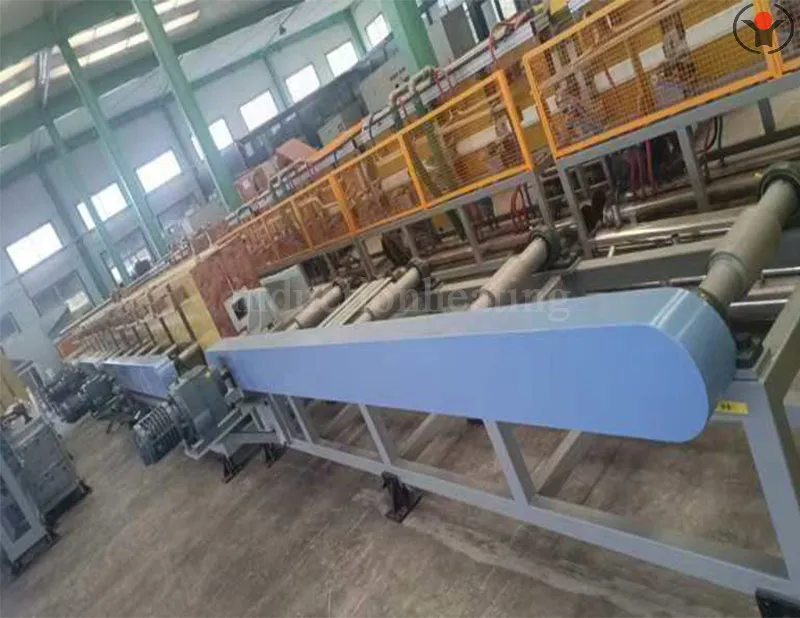

Workshop
