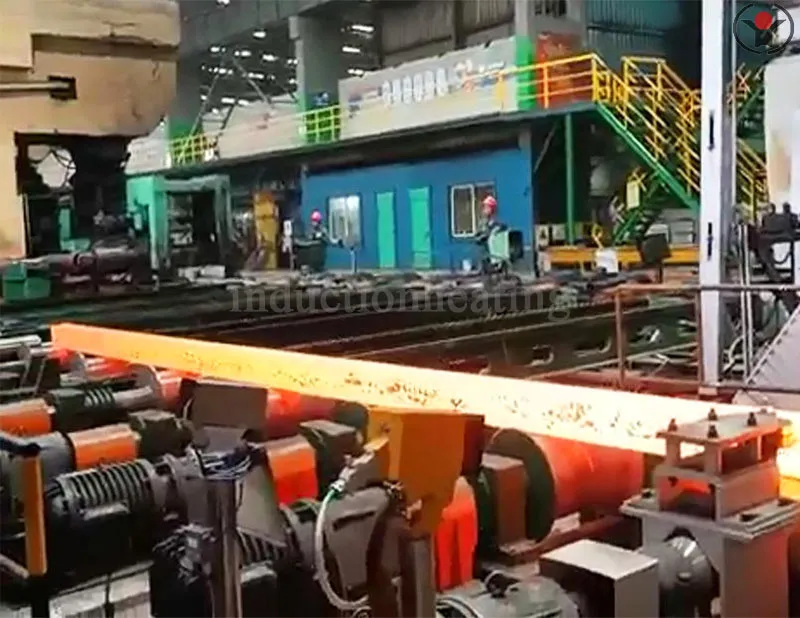

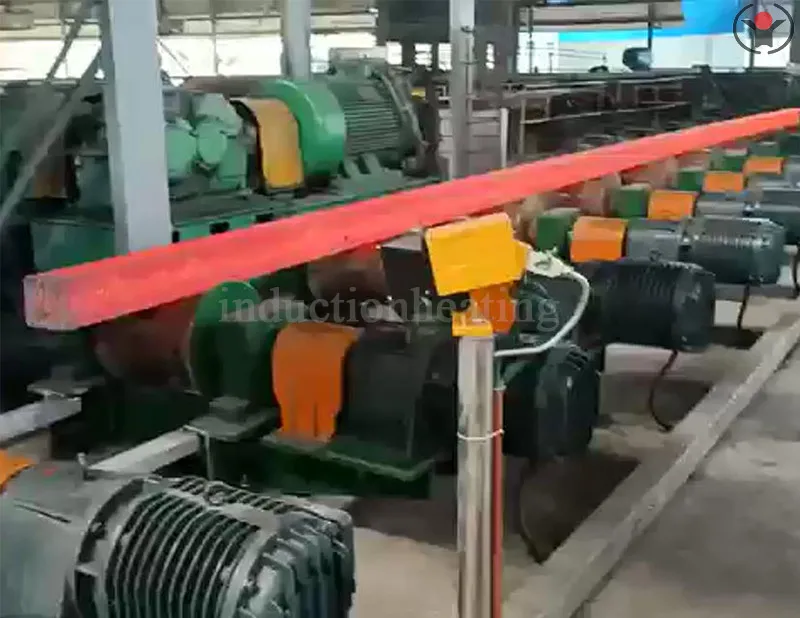

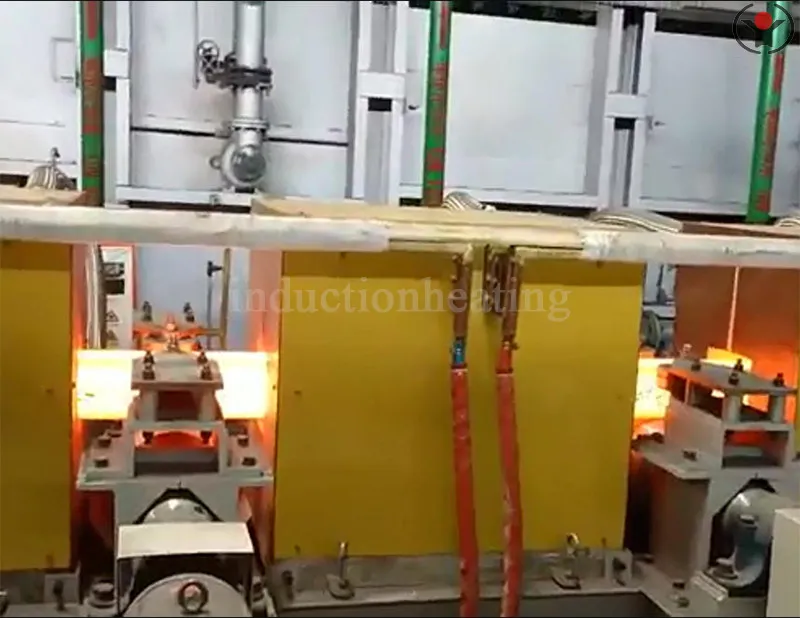

Steel billet heating and reheating furnace

Inquire Now Next Product

Main technical parameters

Main technical parameters of steel damage heating and compensation equipment:

·Applicable workpieces: Suitable for medium frequency induction heating of steel billets, square billets, square steel, continuous casting billets, slabs, etc.

Power supply system: Dual rectifier 12 pulse or 24 pulse 1000-12000KW/500-1200Hz, single power supply can be used independently or multiple power supplies can be used in parallel; The hourly output is 40-300 tons

·Scope of application: 120mm~160mm square billet, length 3000mm~12000mm.

Feeding system: Each axis is driven by an independent motor reducer, with multiple axis drives set up and controlled by a single frequency converter to synchronize the operation of multiple axes. ·Guidance system: using 304 non-magnetic stainless steel guide wheels, and maintaining moderate elasticity in the axial direction of the guide wheels to adapt to the allowable bending range of the steel billet. Temperature closed-loop system: A closed-loop control system consisting of a Leitai infrared thermometer and a Siemens S7, which automatically adjusts the power supply according to the initial temperature and feed rate of the steel entering the sensor, keeping the heating temperature constant before leaving the furnace.

Energy conversion: Depending on the surface temperature of the steel billet, the power consumption per ton of steel is 40-60 degrees.

Advantages and characteristics

Advantages and characteristics of steel billet heating and reheating equipment:

·The operation panel adopts a color LCD display, a large-sized touch screen, high-definition operation images, and is equipped with an operation safety protection system, allowing even first-time users to operate with peace of mind.

·The user-friendly design of a sound operating system greatly shortens the preparation work for using the device. Advanced automatic diagnostic system assists operators in quickly controlling the outstanding performance of the machine.

Adopting an intelligent PLC control system to ensure the stability of the operation of the steel billet heating and compensation equipment.

·The feeding system adopts 304 non-magnetic stainless steel, which is wear-resistant and has a long service life.

The design concept of doubling the safety factor extends the safe service life of the equipment.
