The Forever steel ball production line has the core advantages of high precision, high efficiency, and intelligence in the field of metal product processing (especially bearing steel balls, grinding balls, hardware accessories, etc.), and is suitable for mass production of high standard steel ball products.

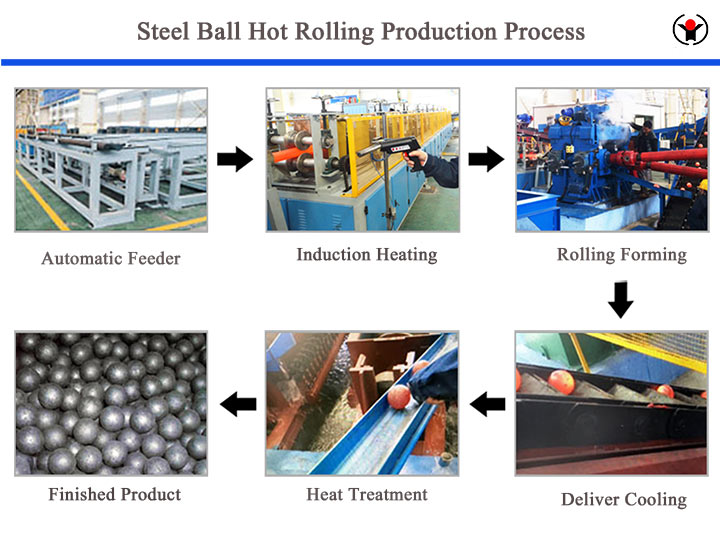

1、 Core components and functions of the steel ball hot rolling heating furnace
Raw material processing section
Bar cutting machine: Cut steel (such as GCr15 bearing steel, stainless steel) into fixed length billets with an accuracy of ± 0.5mm.
Ball forming machine: The billet is pre formed into a spherical shape through cold heading or hot forging processes, reducing subsequent processing allowance.

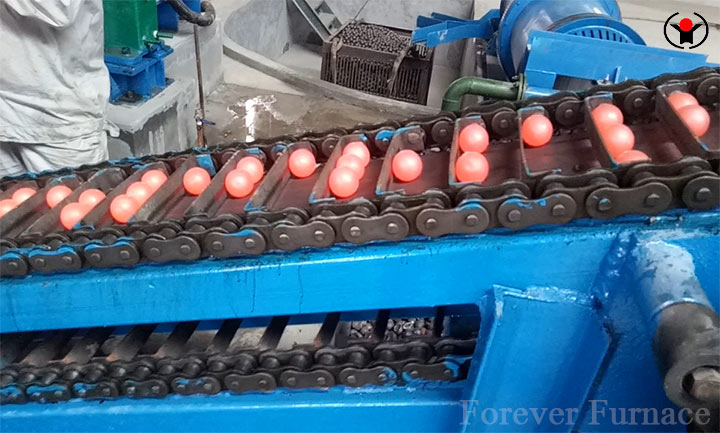

Steel ball forming section
Spinning machine/ball rolling machine: using multi station spinning or oblique rolling technology, the ball blank is rolled into a nearly spherical shape with a dimensional tolerance of up to ± 0.1mm.
Heat treatment equipment:
Induction hardening furnace: quenched after rapid heating (1000~1200 ℃) to increase hardness (HRC 60~65).
Tempering furnace: Relieve stress, stabilize structure (temperature 200~300 ℃).
Precision processing section
Hard grinding machine: Use diamond grinding wheels to roughly grind steel balls, remove oxide scales, and correct roundness.
Precision grinding machine: Precisely grind to a tolerance of ± 0.01mm, with a surface roughness Ra ≤ 0.05 μ m (bearing grade standard).
Polishing machine: using ceramic or resin abrasives for polishing, achieving a mirror effect (Ra ≤ 0.01 μ m).
Detection and segmentation.
Optical detector: automatically detects diameter, roundness, and surface defects (such as cracks and scratches).
Hardness tester: Sample testing for uniformity of hardness.
Sorting machine: Automatically sort and package according to size and grade (G10~G100).

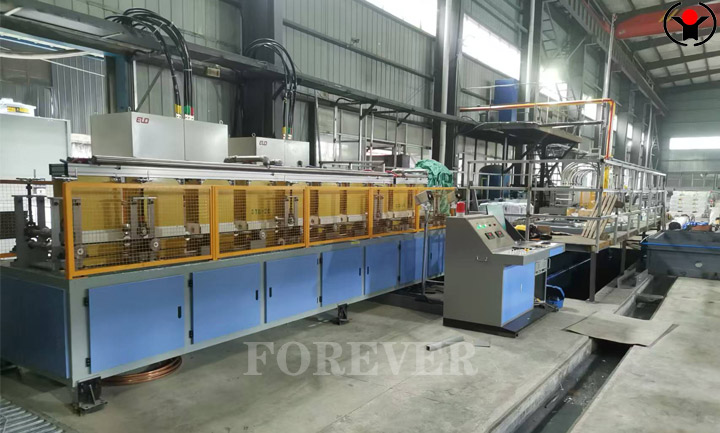

2、 Technical advantages of the Skew rolling steel ball induction machine
1. High precision and consistency
Roundness ≤ 0.05 μ m (up to ISO 3290 standard G5 level), suitable for high-end bearings and precision instruments. The entire process is digitized to reduce human error.
2. Efficient production
The single line production capacity can reach 500000 to 1 million pieces per day (with a diameter of 3~25mm steel balls), supporting 24-hour continuous operation. Automated loading and unloading+robotic arm handling, reducing manual intervention.
3. Energy conservation and environmental protection
Induction heating is 30% more energy-efficient than resistance furnaces, and waste materials such as oxide scales and cutting fluids can be recycled and processed. Closed grinding reduces dust pollution.
4. Intelligent control
PLC+industrial computer: Real time monitoring of pressure, temperature, speed and other parameters, automatic adjustment of processes.
Big data analysis: Record production data, optimize tool life and energy consumption management.
The Forever steel ball production line achieves high-precision and low-cost large-scale production through three core processes: precision forming, intelligent heat treatment, and fully automatic detection. It is particularly suitable for fields with strict requirements for steel ball fatigue life and wear resistance.
