Induction heating furnace for steel ball hot rolling: Industry Advantages & FAQ

As grinding steel balls are widely adopted in mining, cement plant and metallurgical industries, manufacturers are pursuing higher yield, stable mechanical performance and lower operating cost for hot‑rolling production lines. As the core thermal processing device, induction heating furnace directly decides the roundness, hardness consistency and anti‑breakage property of finished steel balls. Forever Electromechanical has upgraded its IGBT‑based medium‑frequency induction heating furnace specially for steel ball hot‑rolling, solving long‑standing bottlenecks of traditional flame furnaces including uneven heating, heavy oxidation loss and high power consumption, bringing reliable one‑stop heating solutions for global steel ball producers.

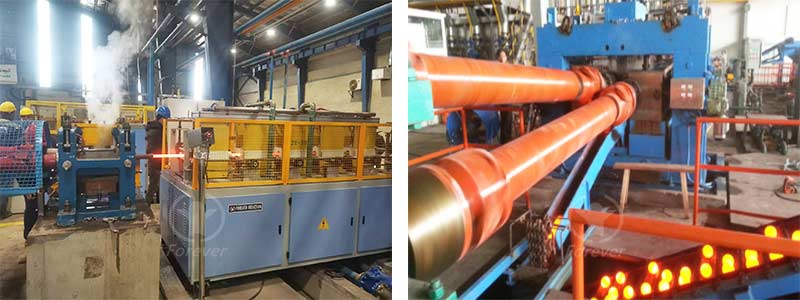

steel ball rolling induction heating furnace

Compared with gas‑fired or coal‑fired heating furnaces, Forever’s induction heating furnace delivers outstanding industry‑oriented advantages. First of all, rapid and uniform heating. It generates heat inside steel bar blanks via electromagnetic eddy current, finishing heating within dozens of seconds. The closed‑loop temperature control with infrared pyrometer keeps temperature tolerance within ±10℃, avoiding local over‑heating or insufficient heating, which largely reduces oxidation and decarburization layer and improves raw‑material utilization rate. Secondly, remarkable energy‑saving and eco‑friendly performance. Thermal efficiency reaches 70%‑75%, cutting power consumption by over 25% versus conventional furnaces. No open flame, no waste gas emission, complying with local environmental‑protection regulations for metal processing workshops. Thirdly, high‑level automation and easy integration. Modular furnace structure matches automatic feeding machine and skew‑rolling mill perfectly. PLC touch‑screen system supports continuous unmanned running, one‑operator supervision for the whole heating segment. It covers steel ball specifications from φ16mm to φ120mm for carbon steel and alloy steel blanks. Fourthly, low maintenance cost. IGBT power units feature high stability, quick on‑off response, no pre‑heating waiting time. Spare‑parts replacement is convenient for long‑term non‑stop industrial production. Steel balls produced by this heating line show better roundness, stable HRC hardness and low fragmentation rate for heavy‑load grinding conditions.

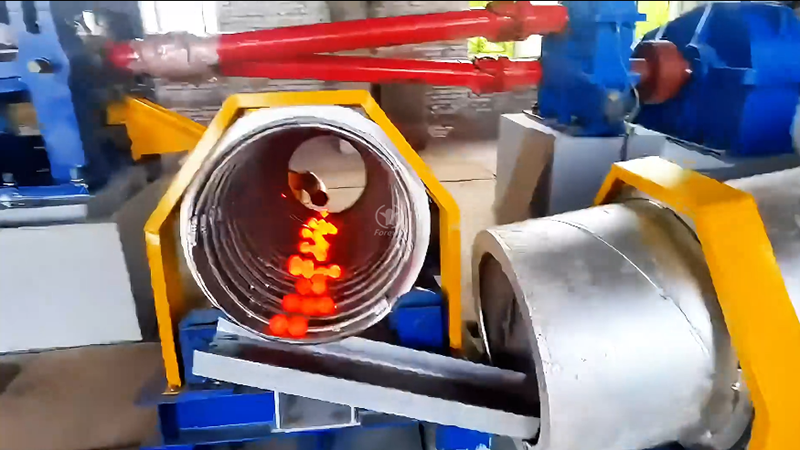

full automatic steel ball production line

Q1: What temperature range does Forever steel ball hot rolling induction furnace support?

A: Adjustable heating range 850‑1150℃. Technicians set target rolling temperature according to steel grade, ball diameter and rolling mill parameters to guarantee ideal plasticity for skew rolling forming.

Q2: Can this induction furnace adapt to multiple steel ball sizes on one line?

A: Yes. By adjusting output power, running speed and matching induction coils, one set of equipment can handle a certain range of bar diameters. For large‑span specification changes, customized coil modules are available.

Q3: What key parameters should customers provide for accurate quotation?

A: Please offer raw bar diameter & material grade, finished steel ball size, hourly output, required heating temperature and on‑site layout condition. These data help Forever engineers configure proper power and furnace length for your production line.

Q5: Is induction furnace suitable for retrofitting existing old steel ball rolling lines?

A: Most existing skew‑rolling production lines can realize retrofitting upgrade. Our technical team will check your current rolling equipment condition and design docking scheme to reduce reconstruction investment.
