Launches Steel Ball Production Line | Skew Rolling Grinding Ball Manufacturing Line

Solving Quality Bottlenecks of Grinding Media Production

Grinding steel balls are core grinding media widely used in mineral processing, cement grinding and thermal power industries. Traditional casting or single forging methods often suffer from loose internal structure, unstable roundness, high breakage rate and poor wear resistance. These defects shorten service life and raise operating costs for mills. Many grinding media manufacturers are looking for continuous, low-fracture forming technology to stabilize product consistency. To meet this global market demand, Forever Electromechanical rolls out its optimized skew rolling grinding ball manufacturing line, providing an integrated forming and heat treatment solution for grinding ball factories.

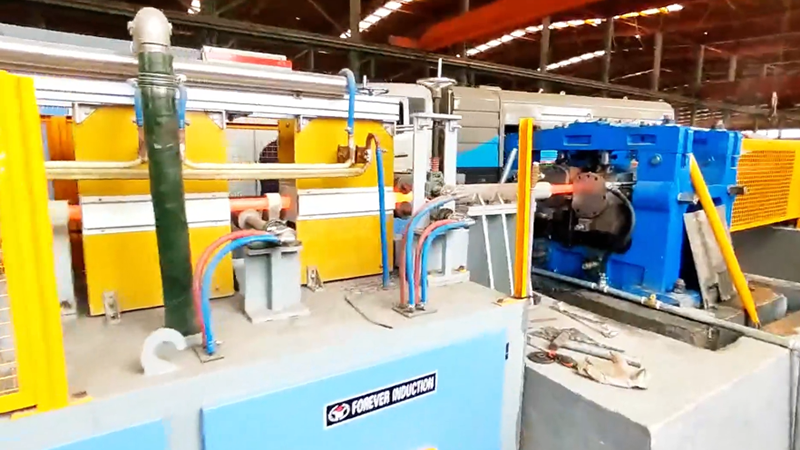

automatic steel ball production line

Skew Rolling Technology Delivers Dense and Precise Ball Forming

This production line adopts mature spiral skew rolling forming technology, different from discrete forging. Round steel bars are fed automatically, heated uniformly by IGBT induction furnace, then sent into the skew rolling mill. Special spiral rollers squeeze and rotate the blank continuously to form spherical workpieces in one pass. The rolling process refines internal grain structure, eliminates internal porosity and shrinkage cavity. The finished balls keep excellent roundness with tight size tolerance. After rolling, balls go straight into online quenching and tempering station, making full use of residual heat to reduce repeated heating loss. The whole forming flow is continuous and efficient, avoiding surface damage caused by repeated handling.

steel ball rolling induction heating furnace

Integrated Heat Treatment System Controls Hardness and Toughness

Matching with skew rolling host, the supporting induction heat treatment unit adopts PLC closed-loop temperature control. Infrared sensors track ball surface temperature in real time and adjust cooling flow and line speed automatically. It achieves balanced hardness from surface to core, prevents surface brittleness or insufficient hardening inside. The line supports multiple steel grades and covers common specifications from 20mm to 120mm. Compared with traditional processes, the skew rolling line greatly lowers ball cracking rate. Finished grinding balls feature high wear resistance and stable impact toughness, which can pass strict drop and abrasion tests for mining and cement applications.

Stable Automatic Operation Reduces Labor and Cost

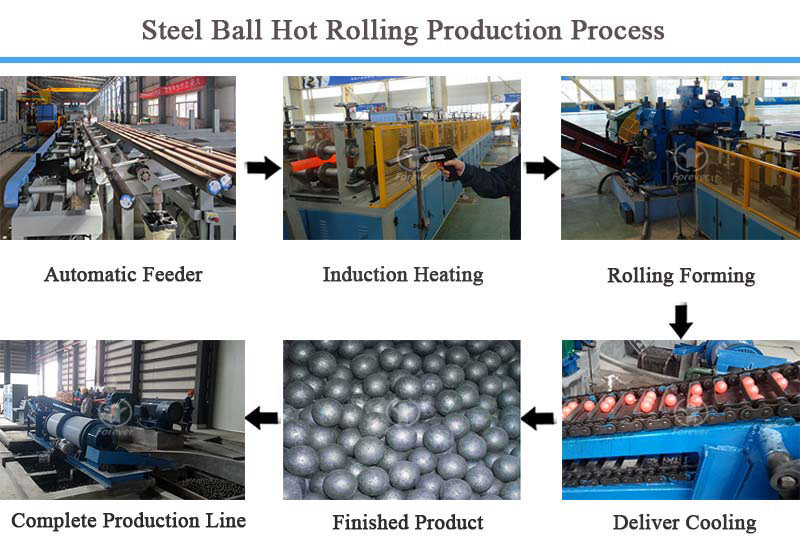

The whole line consists of feeding rack, induction heating furnace, skew rolling mill, quenching & tempering unit, conveyor and automatic sorting device. It can run 24 hours continuously with low manual intervention. Operators only need to select saved process recipes when switching ball sizes, greatly shortening trial adjustment time. The mechanical structure is reinforced for heavy-load rolling, with convenient roller replacement and simple daily maintenance. Induction heating saves more energy than gas furnaces and produces less oxide scale, cutting post-processing workload for clients.

Global Customized Service and After-Sales Support

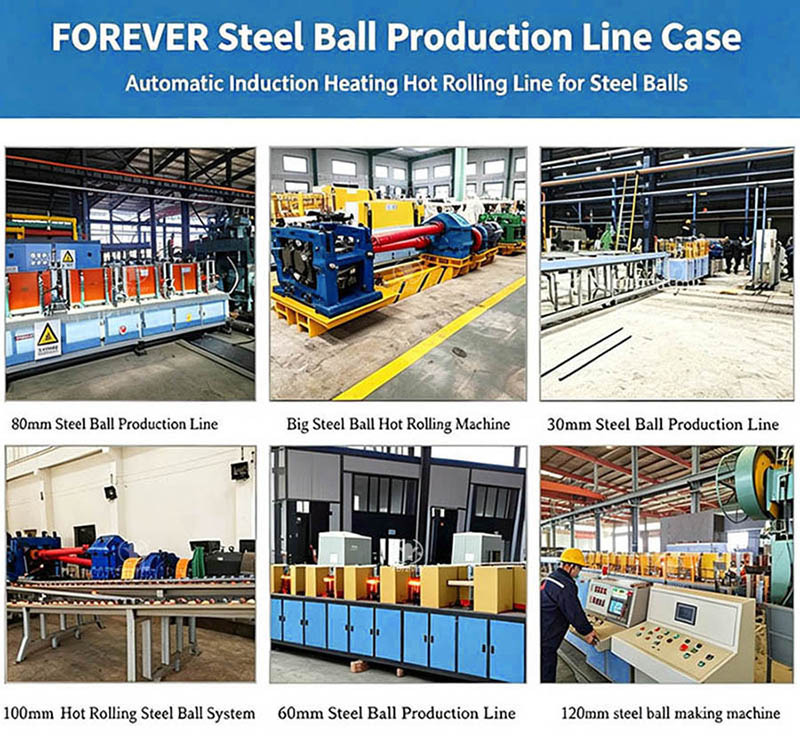

Forever Electromechanical offers customized layout design according to customers’ workshop space and capacity target. The team provides factory acceptance test, on-site installation, commissioning and operator training. Remote monitoring and fault diagnosis function help overseas users minimize downtime. Up to now, Forever’s skew rolling steel ball lines have been delivered to mining and cement clients across the Middle East, Southeast Asia, Russia and Europe, gaining positive feedback on stable output and low breakage rate.

Continuous Innovation for Low-Carbon Grinding Media Equipment

As mineral and cement industries pursue lower consumption and longer service life of grinding media, skew rolling technology becomes a preferred upgrading route. Forever Electromechanical will keep optimizing roller structure, induction coil design and intelligent detection modules. The company will keep developing targeted equipment for grinding balls, steel billets, seamless pipes and threaded rods. By combining reliable skew rolling technology and professional heat treatment know-how, Forever Electromechanical helps grinding media manufacturers improve product competitiveness and realize energy-saving, standardized mass production.
