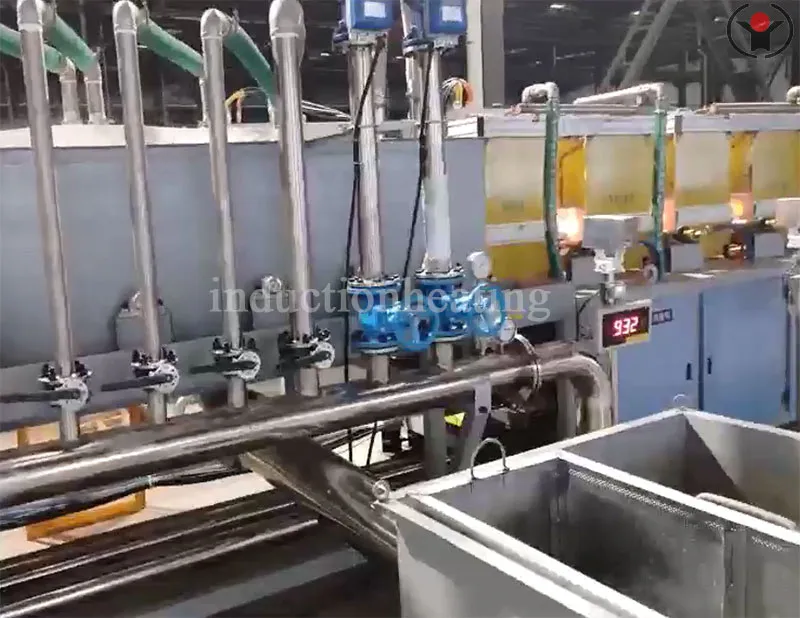

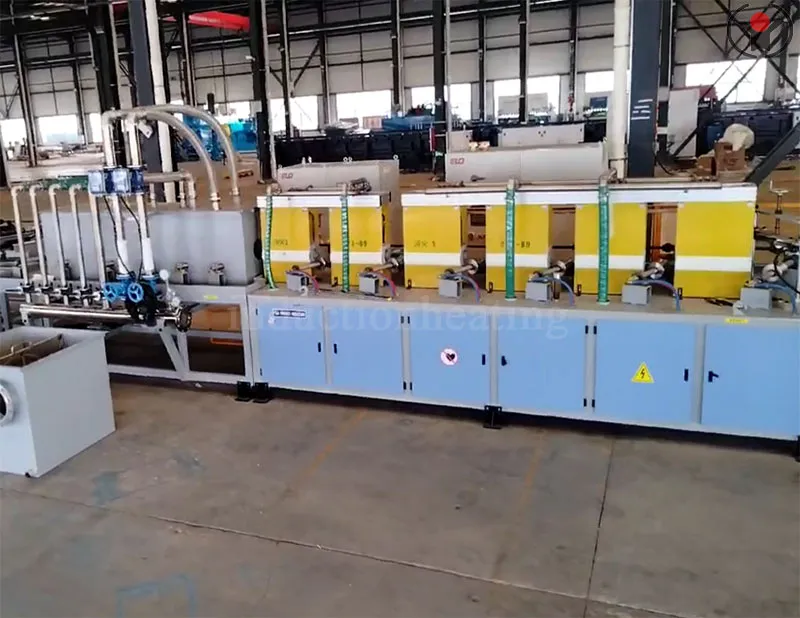

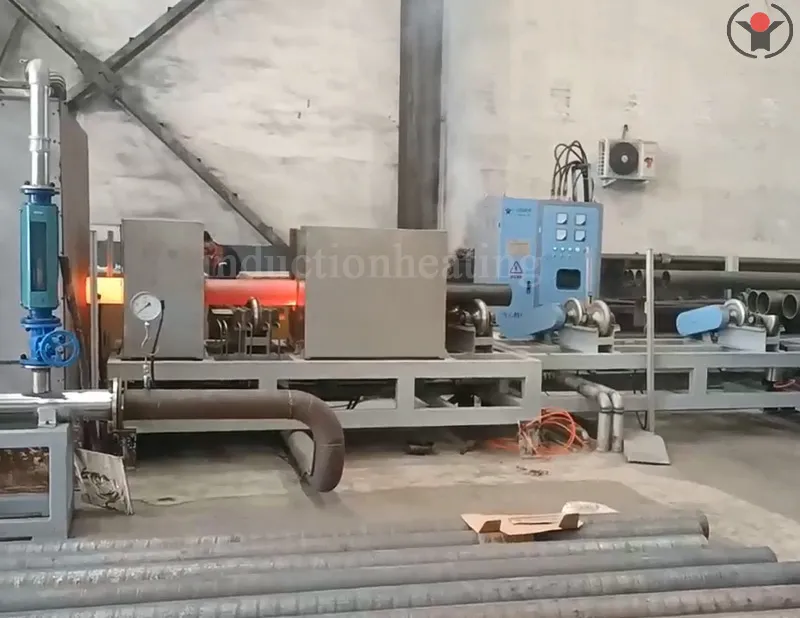

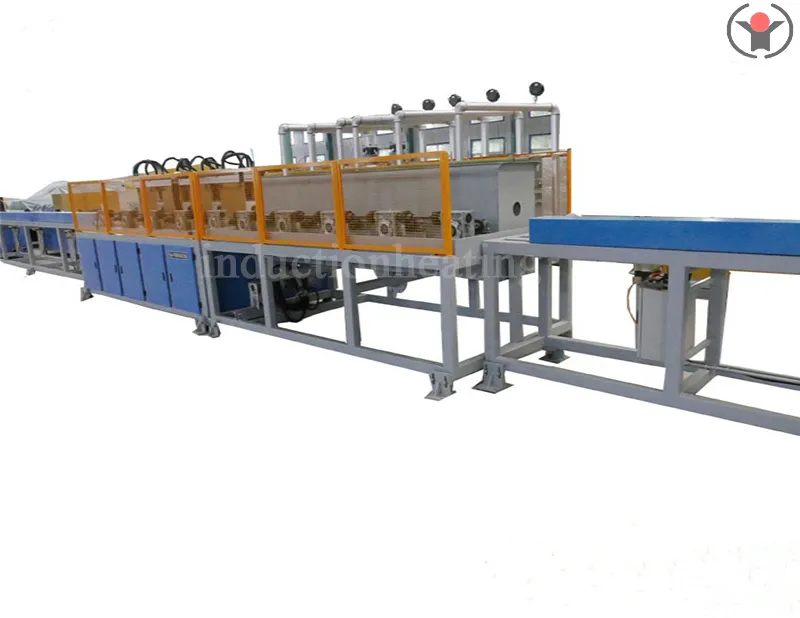

Steel pipe induction hardening furnace

Hebei Forever Electromechanical Equipment Manufacturing Co., Ltd. is a professional manufacturer of fully automatic and intelligent steel pipe induction hardening furnaces. Our professional engineers tailor a suitable steel pipe induction hardening furnace according to your requirements to meet your different process needs. The steel pipe induction hardening furnace adopts a human-machine interface PLc fully automatic intelligent control, with the function of "one click restoration", and the induction heating equipment is easy to operate.

The working process of the mechanical system of the steel pipe induction hardening furnace:

Crane crane material lifting → storage platform → automatic feeding mechanism → feeding roller conveyor → quenching induction heating → infrared temperature measurement → discharging roller conveyor → spray quenching → quenching completion → discharging roller conveyor → cooling mechanism → receiving rack

● Main application: Suitable for quenching heat treatment of steel pipes, seamless steel pipes, thick walled steel pipes, stainless steel pipes, etc.

● Power supply system: The power supply consists of 500~3200KW/1000~800HZ.

● Applicable range: ø 20~ø 600, wall thickness 2.5mm~10mm, hourly output: 1.5~10 tons.

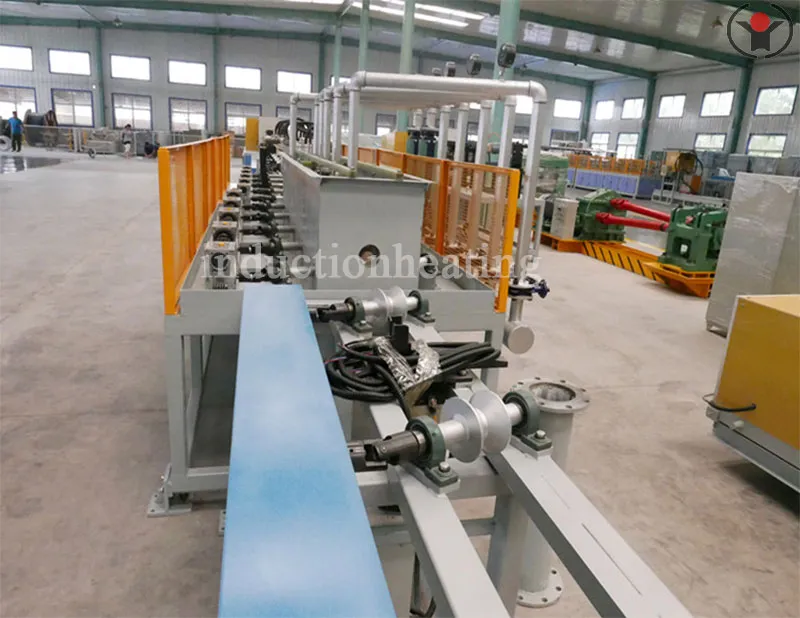

● Conveyor roller conveyor: The axis of the roller conveyor forms an angle of 18-21 ° with the axis of the workpiece. The workpiece rotates while moving forward at a constant speed, making heating more uniform. The roller conveyor between the furnace bodies is made of 304 non-magnetic stainless steel and water-cooled.

● Feeding system: Each axis is driven by an independent motor reducer and controlled by an independent frequency converter; Flexible design of differential output, segmented control of operating speed.

● Formula management function: A powerful formula management system that automatically calls relevant parameters after entering the steel grade, outer diameter, and wall thickness parameters to be produced, eliminating the need to manually record, view, and input the required parameter values for various workpieces.

● Multi channel closed-loop function: A high-level temperature, voltage, and other multi-channel closed-loop system has been designed to address the instability of power supply systems in underdeveloped areas and countries.

● Energy conversion: using quenching method, with a power consumption of 280-320 kWh per ton.
