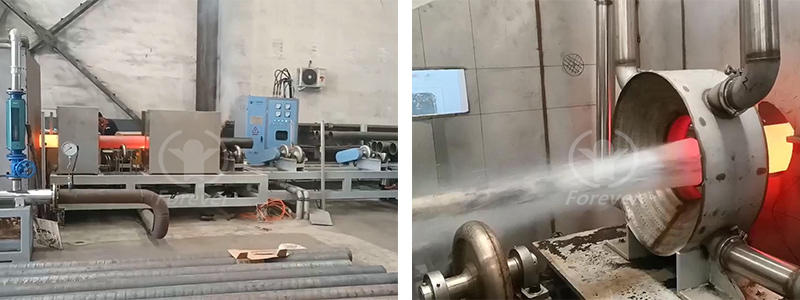

Thick walled steel pipe induction hardening machine

Hebei Forever Electromechanical Equipment Manufacturing Co., Ltd. is a smart choice for Thick walled steel pipe induction hardening machines. The price is reasonable, the technology is advanced, and the Thick walled steel pipe induction hardening machine is energy-saving and environmentally friendly. It occupies a small space, heats evenly, has less oxidation and decarbonization, and has high production efficiency. We can customize a suitable induction quenching furnace according to your process needs.

Main application: Suitable for hardening heat treatment of steel pipes, seamless steel pipes, thick walled steel pipes, stainless steel pipes, etc.

Power supply system: The power supply consists of 500~3200KW/1000~800HZ.

Applicable range: ø 20~ø 600, wall thickness 2.5mm~10mm, hourly output: 1.5~10 tons.

Thick walled steel pipe induction hardening machine and components are all selected from reliable supporting merchants:

There are many supporting components for this device, and the main supporting component companies have designated manufacturers. Various electrical and pneumatic components are made of domestic famous brand products, and key components are selected from imported high-quality products. In addition, in order to ensure the quality of the accessories, the company has also formulated a procurement policy of direct participation of design personnel in selection, unified procurement by the supply department, direct procurement from the manufacturer, and intervention by the technical leaders in charge of important accessories.

[1] Medium frequency power supply range: KGPS160-8000KW

[2] Intermediate frequency induction heater

[3] Hardening sensor (including capacitor bank, water circuit, gas circuit, etc.)

[4] Closed cooling system for intermediate frequency power supply and sensors

[5] Copper bar connecting wire for surface Hardening equipment of thick walled steel pipes (connecting wire between power cabinet and induction furnace)

[6] Input/output system (the workpiece rotates while feeding at a uniform speed, and runs smoothly, with adjustable speed and more uniform heating)

[7] Hardening infrared temperature measuring device (equipped with a Raytheon infrared thermometer from the United States to display the temperature of the workpiece in real time, allowing the workpiece temperature uniformity to be observed at any time during the quenching process)

[8] Hardening spray system

[9] The central control panel (including variable frequency speed regulation and temperature control, Huayan industrial computer, remote start, etc.) is used to directly operate the entire thick walled steel pipe quenching and heat treatment equipment on the central control panel. Only one person is needed to operate the entire thick walled steel pipe hardening equipment, saving labor and costs.

[10] PLC control system, (capable of controlling the operation of the entire mechanical part, human-machine interface, fully digital, highly user-friendly operation)
