Round bar induction heat treatment production line

Inquire Now Next Product

Main technical parameters of round bar induction heat treatment production line:

● Main application: Suitable for medium frequency heat treatment of steel bars, low-carbon alloy steels, round steels, bar materials, etc;

● Power supply system: 160-1000KW/0.5-2.5KHz, hourly output of 0.5-3 tons;

● Scope of application: ø 15 ø 150;

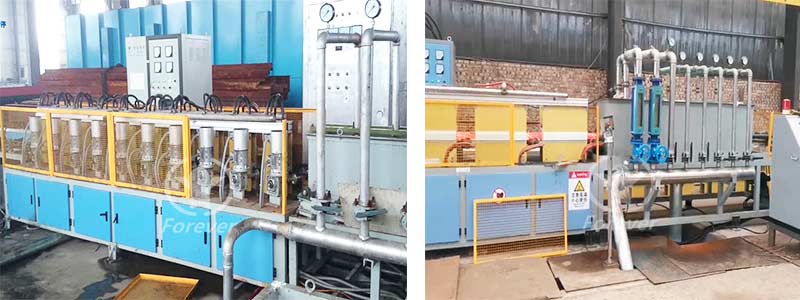

Round bar induction heat treatment production line

Main parameters of Round bar induction heat treatment production line

▲ Conveyor roller conveyor: The axis of the roller conveyor forms an angle of 18-21 ° with the axis of the workpiece. The workpiece rotates while moving forward at a constant speed, making heating more uniform. The roller conveyor between the furnace bodies is made of 304 non-magnetic stainless steel and water-cooled;

▲ Roller grouping: The feeding group, sensor group, and discharge group are independently controlled, which is beneficial for continuous heating without creating gaps between workpieces;

▲ Spray system: adopts multi-stage spray cooling, and the pressure and flow rate between each level of spray ring can be adjusted to meet the requirements of different hardenability;

▲ Temperature closed-loop control: The quenching adopts a Leitai infrared thermometer and forms a closed-loop control system with Siemens S7, with high temperature control accuracy;

Industrial control computer system: Real time display of the status of working parameters at that time, functions such as workpiece parameter memory, storage, printing, fault display, alarm, etc;

▲ Energy conversion: using quenching method, with a power consumption of 260-280 kWh per ton.

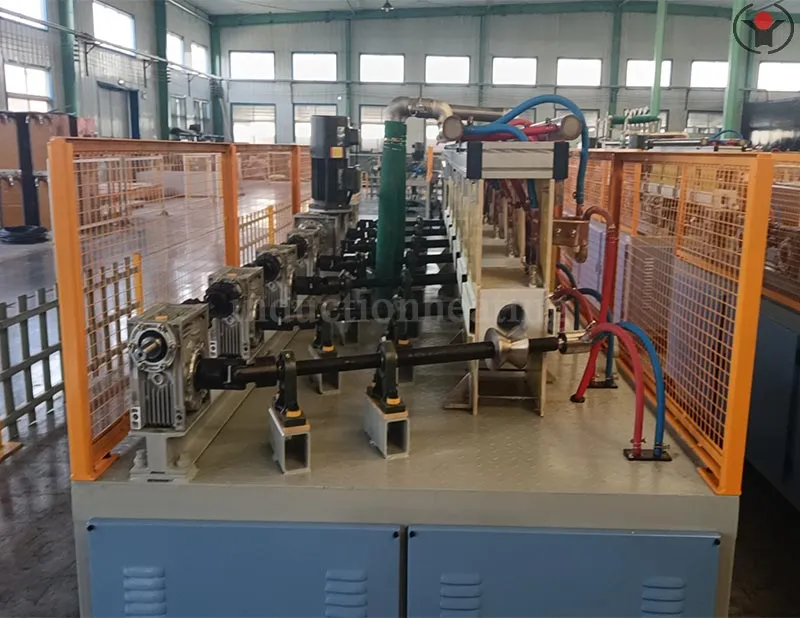

Induction heat treatment furnace case

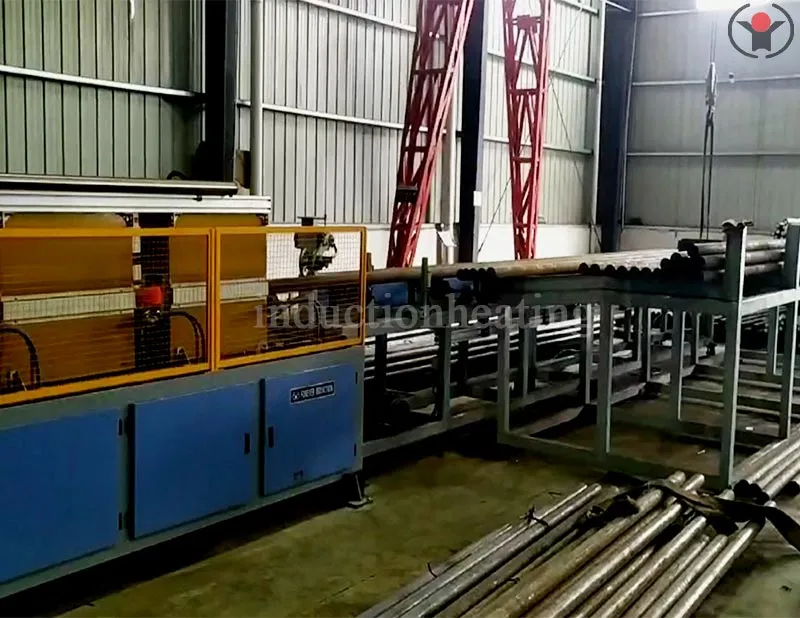

Steel Bar Induction Heat Treatment Furnace
