Steel bar induction hardening and tempering furnace manufacturer,long bar induction heat treatment furnace

The working process of the mechanical system of Steel bar induction hardening and tempering furnace

The working process of the mechanical system of the steel bar induction hardening and tempering furnace: crane lifting → infrared temperature measurement → discharge roller conveyor → storage platform → tempering induction heating → cooling mechanism → automatic feeding mechanism → tempering conveyor mechanism → receiving rack → feeding roller conveyor → hardening completion → hardening → induction heating → spray hardening → infrared → temperature measurement → discharge roller conveyor

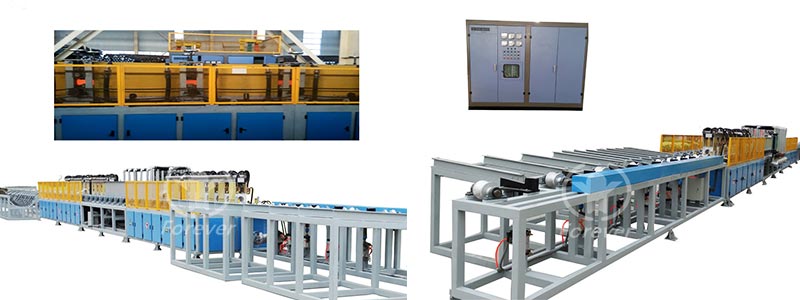

Steel bar induction hardening and tempering furnace

【 Hardening power/frequency 】160-1000KW/0.5-4KHz

【 Tempering power/frequency 】100-600KW/0.5-2.5KHz

【 Production capacity】0.5-3.5t/h

【 Scope of application】20mm to 120mm

【 Main Application 】 Suitable for hardening and tempering heat treatment of steel bars, low-carbon alloy steel, wind turbine bolts, lead screws, and hydraulic cylinder rods.

【 Energy Conversion 】 Adopting the method of hot hardening followed by high-temperature tempering, with a power consumption of 420-480 kWh per ton

Advantages of steel bar induction hardening and tempering furnace

High process flexibility

The steel bar induction hardening and tempering furnace can be precisely adjusted according to different process requirements, suitable for different heat treatment needs of various metal materials.

Efficient production

Continuous heat treatment furnaces and induction heating technology greatly improve production efficiency, suitable for continuous production of large quantities of steel bars, and shorten production cycles.

Stable product quality

Through precise temperature control and uniform heating, the steel bar induction hardening and tempering furnace can ensure consistent heat treatment effects for each batch of products, improving the stability of product quality.

Easy to operate and low maintenance cost

Modern heat treatment furnaces are equipped with automated control systems, which are easy to operate and maintain, reducing equipment downtime and maintenance costs.

Energy-saving and environmental protection

The steel bar induction hardening and tempering furnace utilizes efficient heating methods to reduce energy consumption, while emitting no pollutants, which meets the environmental requirements of current green manufacturing.

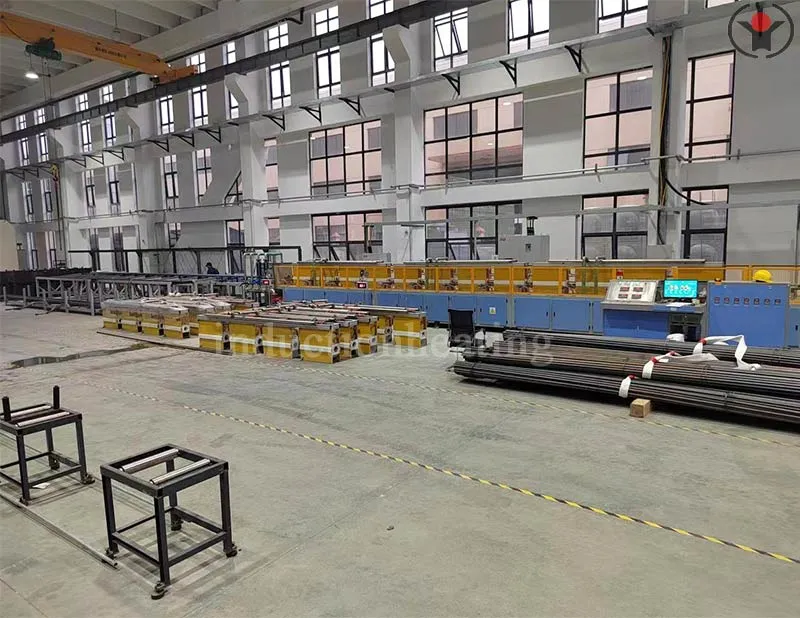

Forever Induction Heat Treatment Machine Case

Steel Bar Induction Heat Treatment Furnace
