billet reheating equipment

billet reheating equipment


Process: Continuous Casting & Rolling

Application: Increasing Temp. of Billet online

Material Heated:Carbon Steel & Alloy Steel

Product Detail

Application Video

Product Tags

Billet reheating equipment

Continuous casting and rolling process: After the billet discharging the continuous casting machine(CDM), the heat will lose, so we need to regain heat for billet rolling. Then our Billet reheating furnace can reheat the steel billet from 700-800℃ to 1000-1200℃ to realize online heating.

Billet reheating equipment filed workingLong-bar-heat-treatment-machine

Billet induction reheating system with induction heating

●     Heating fast and uniform.

●     Power saving 10% or above:Less harmonics, high power factor, load output voltage is high, the load coil current is low,small power consumption.

●     100% successful starting.Reliable frequent starting is available.

●     Easy installation & commission and simple operation.

●     Safe and reliable.Perfect protections for long life performance and very safe for operators. Automatic protections for water temperature,water pressure,phase shortage, overcurrent and undervoltage.

●     High reliability:Adopt famous brand components which reduce fault rate and make sure the equipment can run reliably.

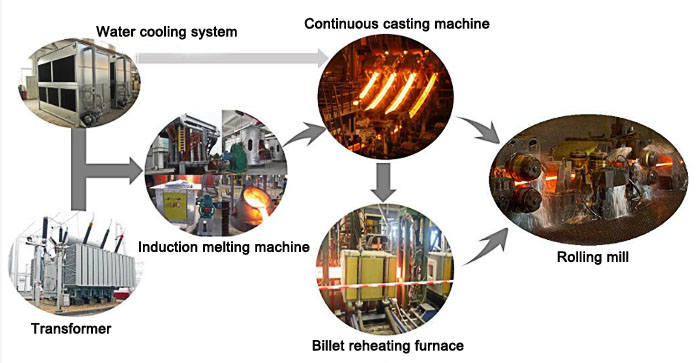

Our billet reheating furnace working principle in the continuous casting and rolling process.

billet reheating furnace working

Successful cases:

Billet size Billet length Heating Temp. Production capacity
60*60mm2 3m-4 m 1000℃-1100℃ 25T/H
75*75mm2 3-6 m Room Temp.-1100℃ 25T/H
100*100mm2 2 m 750℃-1000℃ 7T/H
120*120mm2 750℃-1100℃ 30T/H
120*120mm2 11.5-12.5m 950℃-1150℃ 90T/H
125*125mm2 6  m Room Temp.-1200℃ 8T/H
125*125mm2 2 m 750℃-1000℃ 7T/H
130*130mm2 6 m 950℃-1150℃ 50T/H
135*135mm2 6 m 950℃-1150℃ 100T/H
150*150mm2 11.5-12.5m 950℃-1150℃ 70T/H

components-supplierscoucustomer vistingcompany


Overseas manager: Tom Wang

Phone: 0086-13303078975(whatsapp, wechat,line)

Specialist of  induction heat treatment furnace in China; Glad to be your business partner in induction heating field.
