Induction furnace for bars rolling

Induction furnace for bars rolling

Features:

Production name Induction furnace for bars rolling
Brand Forever
Bar diameter ø12-50 mm
Bar length 6000mm

Product Detail

Application Video

Product Tags

Induction furnace for bars rolling is manufactured by Forever, which is one of the leading manufacturers of induction billet heater. Induction furnace for bars rolling has automatic intelligent control system which can automatically adjust heating temperature and time to ensure the bars quality before charging the rolling mill.

Technical parameters for Induction furnace for bars rolling

Production name Induction furnace for bars rolling
Brand Forever
Bar diameter ø12-50 mm
Bar length 6000mm
Bar surface temperature Room temperature
Heating to 900-1200℃
Capacity 2000kg/h

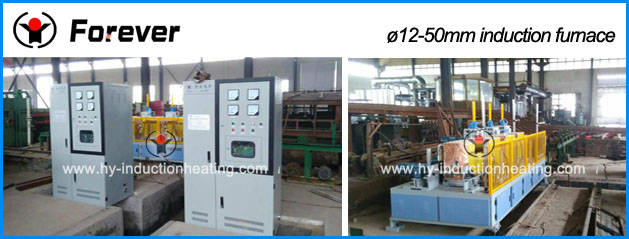

induction furnace for bars hot rolling

Supply scope for induction furnace for bars rolling

No. Machine name Quantity
1 KGPS760KW MF Power Supply 1 Set
2 Capacitor Cabinet 1 Set
3 Induction heating coil 1 Set
4 Conveying roller table  1 Set
5 Storage rack,the length is 6 meters 1 Set
6 Feeding rack including transmission roller,the distance is 500mm between two rollers,the length is 6 meters 1 Set
7 Infrared thermometer 1 Set
8 Remote console 1 Set
9 Product qualification certificate and maintenance instruction

Advantages of Forever induction furnace for bars rolling

● Quick change type furnace: The user can replace the furnace segment within 15 minutes.

● Digital medium frequency power supply: Before sending the equipment, our factory has set all the process parameters suitable for your bars heating, user need not to set by himself. If need to change, user can operate the touch screen on the remote console easily.

● Our equipment has the functions of automatic temperature adjustment,saving process parameters and protections.

● There is infrared thermometer at the furnace discharge port, which can form closed-loop control with the power supply and reach the purpose of control the heating temperature and time.



Specialist of billet heating furnace and system in China; Glad to be your business partner in induction heating field.
