Induction quenching machine for torsion bar

Induction quenching machine for torsion bar

Features:

Material 45C-TS & 42CrMo
Bar size ø17-28 mm
Bar length 900-1167mm
Control system PLC control

Product Detail

Application Video

Product Tags

Induction quenching machine for torsion bar is developed & manufactured for auto torsion bar or sway bars quenching heat treatment. In order to ensure the quality of auto parts, the hot rolled torsion bars can not used for auto production directly. only heat treatment with induction quenching machine for torsion bar can be used.

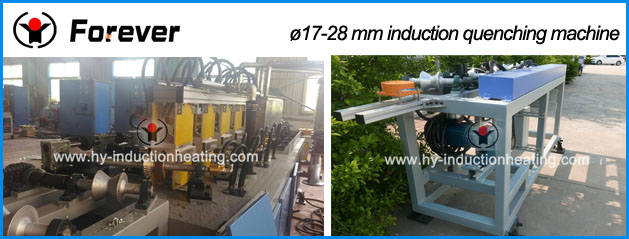

Site case for Induction quenching machine for torsion bar

Product name Induction quenching machine for torsion bar
Brand Forever
Material 45C-TS & 42CrMo
Bar size ø17-28 mm
Bar length 900-1167mm
Control system PLC control
Process Quenching
Power required KGPS-200KW/4000HZ
Line speed 2-3m/min (ø24 as standard)

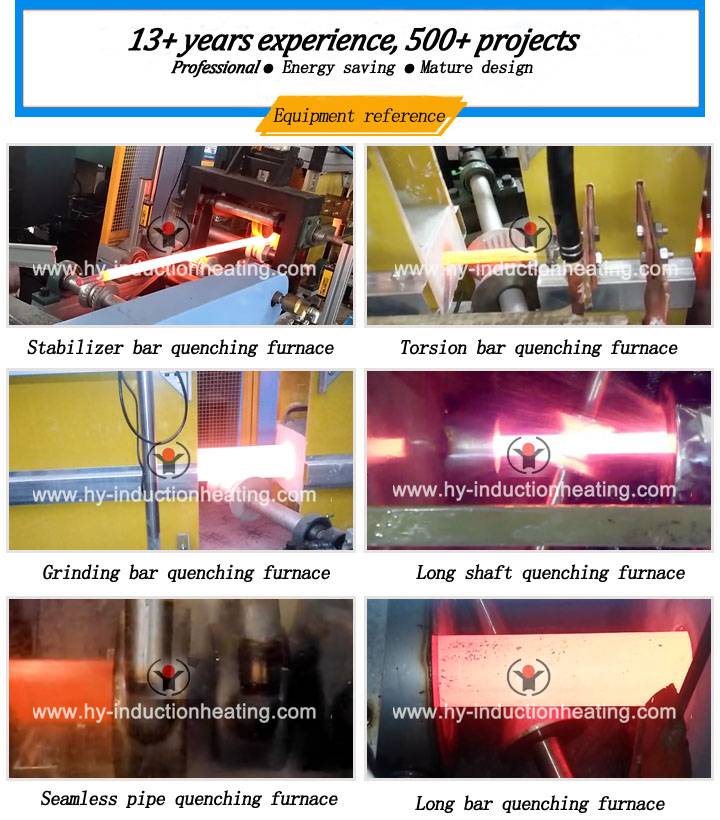

torsion bar quenching furnace



Working flow for induction quenching machine for torsion bar

The whole process is automatically completed by PLC, and records all the parameters of the production process: power supply, operation status, temperature, production and other datas.

Workers put the bars on the storage platform—-Automatic feeding—-Automatic transmission—-Induction heating—-Quenching spraying—-Automatic transmission—-Bar storage platform

induction quenching machine drawing

The features for Induction quenching machine for torsion bar

●  Induction quenching machine is using series resonant power control, full touch screen control system.

●  Featuring fast heating speed, less oxidation decarbonization and easy operation, induction quenching furnace is used by more and more users.

●  As per different need of quenching depth, the user can adjust the frequency and power of induction quenching furnace to get high hardness, strength and toughness.

●  After surface quenching heat treatment, the torsion bars ability for anti-fatigue and breaking are is improved, no cracks in the workpiece. The tensile strength will be more better.

●  Induction quenching furnace protection function is complete with over-current, over-voltage etc.

● Measuring and monitoring temperature with the United States Raytek two-color , real-time display workpiece heating temperature to ensure product quality.

http://www.hy-inductionheating.com/products/surface-quenching-furnace-for-bar.html



Specialist of billet heating furnace and system in China; Glad to be your business partner in induction heating field.
