Steel plate heat treatment furnace

Steel plate heat treatment furnace

Features:

Material Carbon steel
Suitable for  The thickness is more than 5.0mm
Process Quenching, Annealing, Tempering

Product Detail

Application Video

Product Tags

As the professional manufacturer of steel plate heat treatment furnace in China, YuanTuo always supply customized steel plate heat treatment furnace according to user’s requirement.

The reference for Steel plate heat treatment furnace

Product name Steel plate heat treatment furnace
Brand YuanTuo
Material Carbon steel
Suitable for  The thickness is more than 5.0mm
Process Quenching ,annealing,tempering
Heating temperature 900-950℃
Power required 100-8000KW

http://www.hy-inductionheating.com/products/steel-plate-heat-treatment-furnace.html

 Introduction for Steel plate heat treatment furnace:

1.Parallel resonant design, phase shift power, rectifier full open, high power factor, small harmonic, simple operation.

2.The power supply and inductor always maintain a reliable match with full power output, energy saving 15-30% compared with the traditional power inverter.

3.The power supply can automatically regulate the parameters for different size of workpiece.

4.Full touch screen control, pure digital setting, having complete process records and strict level of authority. The main parameters can be a key to restore the factory settings.

5. The device has self-protection (over-current, over-voltage, water pressure, phase loss, undervoltage, overload), in case of urgent matter, the equipment has self-diagnosis function.

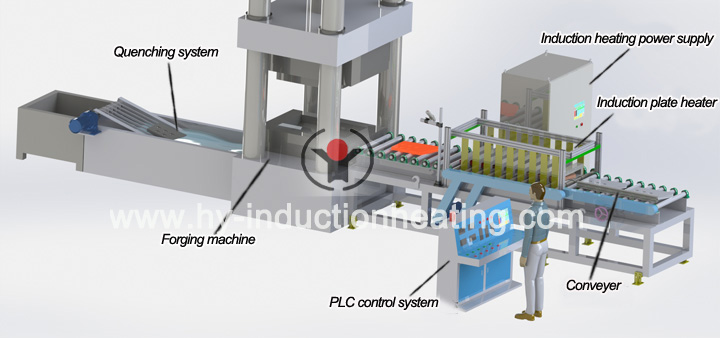

plate quenching

Mechanical properties of Forever Steel plate heat treatment furnace

1.Pinch rollers and independent motor driving for the steel plate heat treatment furnace, which can make the furnace not be effected if one of the motors has problem.

2.The steel plate heat treatment furnace adopts water-cooled roller frequency feeding way, the workpiece can be uniform delivery. We set sensor on the converying device to ensure that the plate can go through the roller smoothly.

3. According to the mechanical industry safety standardization requirements, all the mechanical rotating exposed outside should have reliable protective cover, plate heat treatment heating equipment should be consistent with national environment.

4.The steel plate heat treatment furnace is using the United States Raytek thermometer temperature control, real-time display of the current temperature.

5. We designed a rugged roller electrical isolation system for the steel plate heat treatment furnace to solve the problem of workpiece damage.

http://www.hy-inductionheating.com/products/continuous-hardening-and-tempering-furnace.html

Specialist of billet heating furnace and system in China; Glad to be your business partner in induction heating field.
