Forever specializes in producing steel billet reheating furnace -China manufacturer

Hebei Forever Electromechanical Equipment Manufacturing Co., Ltd. mainly researches, produces, and sells various series of induction heating complete sets of equipment, with complete models and stable product quality. The company has multiple induction heating technical engineers and nearly 20 years of experience in induction heating technology research and development and production of induction heat treatment equipment. With induction heating related problems, we seek professional technical engineers to solve them.

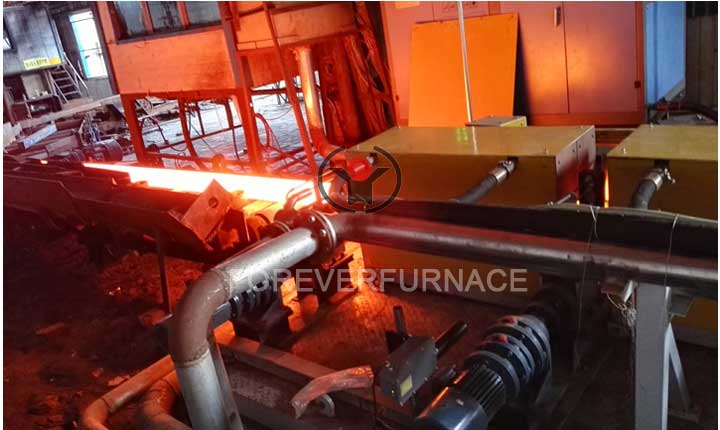

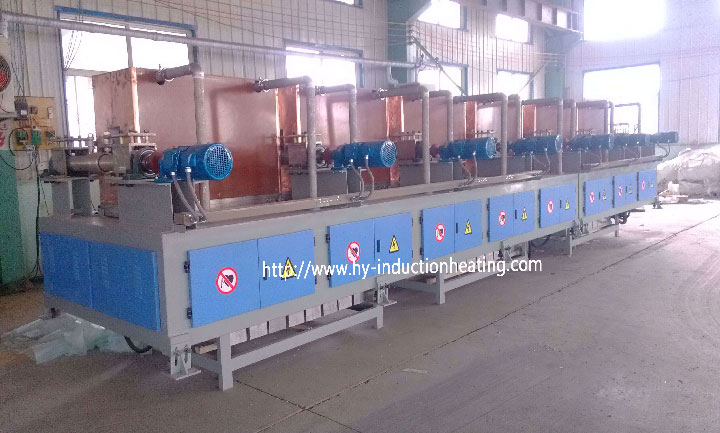

Forever specializes in customizing the billet induction reheating machine , using the new generation IBGT power module and excellent frequency conversion technology to control the entire system. The secondary heating furnace for steel billets heats uniformly, is energy-saving and environmentally friendly, and has high production efficiency.

Characteristics of steel billet induction heating furnace:

1. Control system: The entire heating process is automatically controlled by PLC, and production records such as heating quantity are displayed in a timely manner. This console is used alone, with a specially customized human-machine interface, highly user-friendly operation instructions, fully digital, high depth adjustable parameters, and a one click restore function, making it easy to operate.

2. The temperature of the secondary heating furnace for steel billets is controlled by the American Raytheon thermometer, which displays the current temperature of the steel billets in real time. The heating is uniform and the product qualification rate is high.

3. Feeding and guiding system: Each axis is driven by an independent motor reducer, equipped with multi axis drive and controlled by a single frequency converter to ensure synchronous operation of multiple axes. The components are selected from well-known brands, with reliable quality and stable operation. Using 304 non-magnetic stainless steel guide wheels to maintain moderate elasticity in the axial direction, in order to adapt to the allowable bending range of the steel billet.

4. The cabinet body is entirely sandblasted, sprayed with plastic, and painted, and the waterways are made of thick walled stainless steel. The Induction billet heating furnace is corrosion-resistant and has a long service life. The equipment is equipped with a large LCD temperature display screen (convenient for on-site personnel to observe and display data).
