Steel bar induction heat treatment machine supplier

steel bar induction heat treatment furnace Main technical parameters:

Power supply system: quenching power supply: 160-1000KW/0.5-2.5KHz; Tempering power supply: 100-600KW/0.5-2.5KHz, hourly production capacity 0.5-3.5 tons, applicable range ø 20- ø 120.

● Conveying roller table: The axis of the roller table forms an angle of 18-21 ° with the axis of the workpiece. The workpiece rotates while moving forward at a uniform speed, making the heating more uniform. The roller table between the furnace bodies is made of 304 non-magnetic stainless steel and water-cooled.

● Roller table grouping: The feeding group, inductor group, and discharge group are independently controlled, which is conducive to continuous heating without creating gaps between workpieces.

● Temperature closed-loop control: Both quenching and tempering are controlled using an American Raytheon infrared thermometer and a closed-loop control system composed of German Siemens S7, providing precise temperature control.

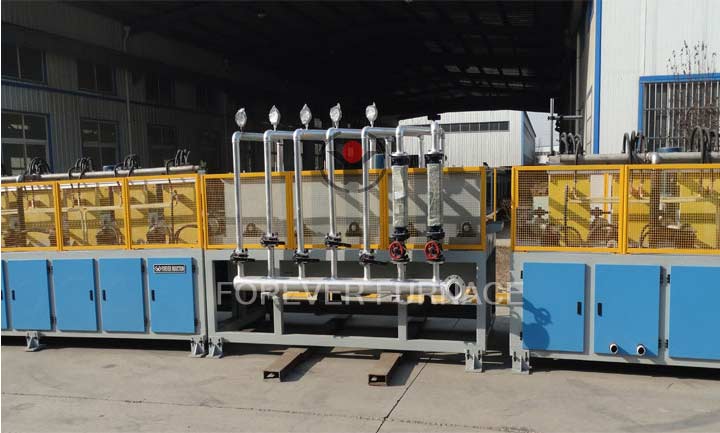

steel bar induction heat treatment machine

Industrial control computer system: Real time display of the status of working parameters at that time, with functions such as workpiece parameter memory, storage, printing, fault display, alarm, etc.

▲ Energy conversion: Adopting quenching and tempering method, with a power consumption of 280-320 degrees per ton.

▲ Provide remote operation consoles with touch screens or industrial computer systems according to user needs.

▲ Customized human-machine interface with highly user-friendly operation instructions.

▲ Fully digital, high depth adjustable parameters allow you to easily control the device.

▲ Strict level management system and a comprehensive one click restore system.

▲ Provide corresponding language switching according to different countries and regions.

 Welcome to send an email for the details.

Overseas manager: Tom Wang

Phone: 0086-13303078975(whatsapp, wechat,line)

Specialist of  induction heat treatment furnace in China; Glad to be your business partner in induction heating field.
