Shaft heat treatment line

Shaft heat treatment line

Features:

● Uniform heating & cooling

● PLC control system

● Heat treating for shaft, torsion bar, stabilizer bar, grinding rod, sucker rod, pipe, plate

Product Detail

Application Video

Product Tags

Shaft heat treatment line

●  Shaft diameter: ø20-150mm
●  Shaft length: 800mm-2000mm
●  Power required: 100-2000KW  The specific power depends on the specific shaft production capacity.
●  induction heat treating process: Quenching, tempering or annealing

Shaft heat treatment line composition

●  Storage platform
●  Automatic feeder
●  Conveying roller table, the rollers are makde of stainless steel.
●  Induction heater for quenching and tempering
●  Spray water cooling device
●  Cooling table
●  Bar receiving platform
●  Induction heating power supply

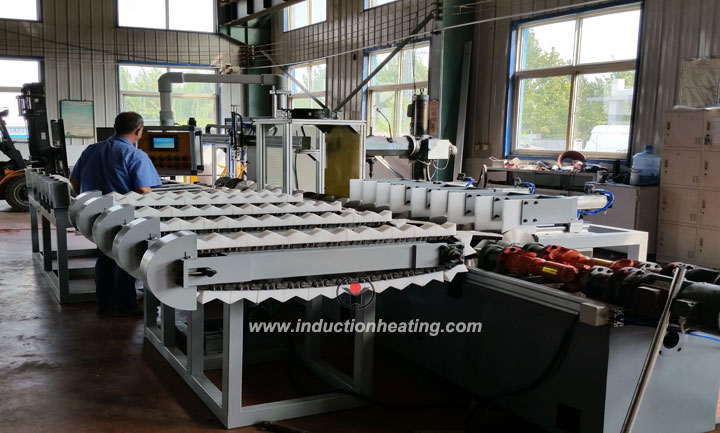

Shaft-heat-treatment-line2

Shaft heat treatment line advantages

●  Shaft heat treatment line is using PLC fully automatic control system to control all the actions including feeding, heating, cooling and discharging to save labors.

●  The roller table of ribbed Shaft heat treatment line adopts 304 non-magnetic stainless steel, roller shaft and the workpiece into the 18-21 degree angle. The workpiece will go forward while rotate by itself.

●  The feeding system of Shaft heat treatment line is using Nordisk reducer with independent inverter control.

●   The Shaft heat treatment line is using automatic injecting system to maintain the service life of components.

●   Input system pneumatic components adopts well-known brands such as: cylinder, diad, controller and so on.

●   The temperature fluctuation range is ± 10 ℃ with uniform heating. The operator can see the temperature changes from the touch screen curve.

●   After hardening and tempering, the shaft has very high toughness and impact strength.

cases

Steel bar diameter Automatic Control Power Design
Ø10-Ø28 mm IPC Control KGPS350KW Quenching+KGPS160KW Tempering
Ø42-Ø48 mm(Anchor Bolt) PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-60 mm IPC Control IGBT250KW Quenching+IGBT160KW Tempering
Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering
Pipe diameter Automatic control Power design
Ø95,Ø114 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø73.2,Ø88.9,139.7 mm(Drill pipe) IPC Control KGPS500KW Quenching+KGPS100KW Tempering
Ø30-Ø60 mm PLC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø35-Ø60 mm IPC Control KGPS250KW Quenching+KGPS160KW Tempering
Ø30-Ø110 mm IPC Control KGPS400KW Quenching+KGPS400KW Tempering
Ø80-Ø110 mm PLC Control KGPS600KW Quenching+KGPS160KW Tempering
