Medium frequency forging steel ball induction heating furnace

Medium frequency forging steel ball induction heating furnace


1.Available Power:100KW-8000KW

2.Available Frequency:500Hz-8000Hz

3.Heating Diameter:Ø16-150MM

4.PLC Closed-Loop Control and Automatic


Product Detail

Application Video

Product Tags

Forever Furnace has manufactured more than one hundred sets of steel ball forging heating furnace with power from 100KW to 8000KW,frequency from 500Hz to 8000Hz and the heating diameter from Ø16-Ø150mm. But the length of steel bar is not limited.Forever Furnace steel ball forging heating furnace has equipped with PLC closed-loop automatic control and achieved unmanned operation for automatic feeding and heating process.

Common frequency for steel ball forging induction machine

1.High frequency heating:100-500KHZ. Usually,200-300KHZ is high frequency of electronic tube type.The hardening layer is 0.5-2.5mm suitable for medium and small spare parts.

2.Medium frequency heating:500-10000HZ.Usually 2500-8000HZ is for mechanical medium frequency heating device or SCR medium frequency generator.The hardening layer is 10mm suitable for large diameter of shaft and large gears.

3.Power frequency heating:the current frequency is 50HZ.With mechanical power frequency heating equipment,the hardening layer is 10-20mm suitable for surface hardening of large diameter work piece.

Forever other large power induction heating system

1.Round steel continuous heating production line with 500KW power

2.Grinding rod of 100mm diameter heat treatment system

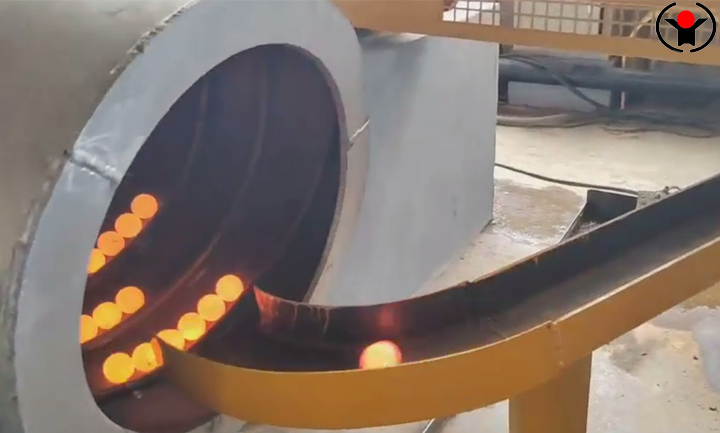

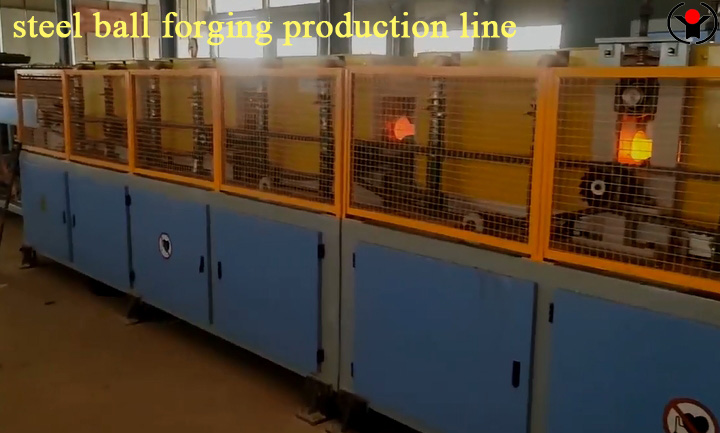

3.Steel ball forging heating furnace

4.PC steel bar heat treatment system

5.Long shaft automatic temperature control production line

6.Medium frequency hardening and tempering system

 7. steel ball forging induction furnace of 2500KW power.

8.Steel billet reheating production line

9.Carbon steel forging heating equipment
