Steel plate hardening and tempering

Steel plate hardening and tempering

Features:

Material SPCC、IF、DC06、201、304
Process Hardening, tempering
Power required KGPS100KW-2500KW

Product Detail

Application Video

Product Tags

Steel plate hardening and tempering furnace uses intelligent PLC man-machine interface control system to achieve automatic heating, cooling and tempering. As the steel plate hardening and tempering adopts induction heating method, there is no gas, smoke, heat for the working conditions. The steel plate hardening and tempering has been welcomed by more and more people.

Technical parameters for Steel plate hardening and tempering furnace

Product name Steel plate hardening and tempering furnace
Brand Yuantuo
Material SPCC、IF、DC06、201、304
Suitable for  The thickness is more than 5.0mm
Process Hardening, tempering
Heating temperature 900-950℃
Power required KGPS100KW-2500KW

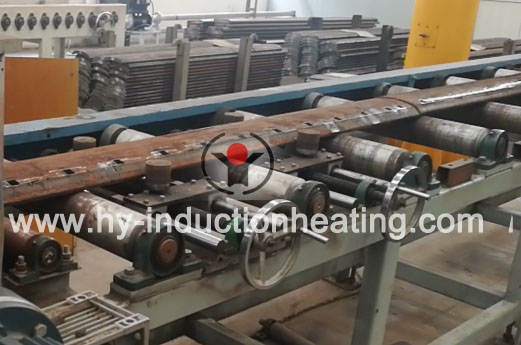

steel plate hardening and tempering furnace

Computer control system features for plate heat treatment furnace:

1. Self-learning control method to complete the parameter self-setting

First call the process recipe template for power settings, and then use self-learning control method to complete the parameter self-setting, and ultimately achieve the system’s control requirements.

2. Process setting, operation, alarm, real-time trend, history screen display requirements:

A.Mechanical system will automatically run, track,display and record the number of processing.

B. Diagrams of parameters including sucker rod temperature, voltage, current, frequency and other parameters.

C.Power consumption parameter will be recorded and saved.

D. Display, record and store the fault problem such as overload, overflow, over-voltage, lack of phase, control power under-voltage, low cooling water pressure, high cooling water temperature and so on.

3. Process formulation management:

The products with different specifications, materials and temperature rise curves should have corresponding formwork templates (which can be gradually fixed in the actual production process), which can modify the setpoints and process control PID parameters in the template, and save the corrected formula.

4. Operator classification management

Available login separated by system administrator, production supervisor and operator

Quenching machine for steel plate hardening and tempering furnace

The quenching machine consists of a stainless steel tank, water spray system, inverter transmission device, flowmeter, pressure and water temperature monitoring device.

When the high temperature plate is charged into the quenching machine, the spray ring will cooled the plate with appropriate pressure, water temperature and flow rate.coucustomer vistingcompany

Specialist of billet heating furnace and system in China; Glad to be your business partner in induction heating field.
