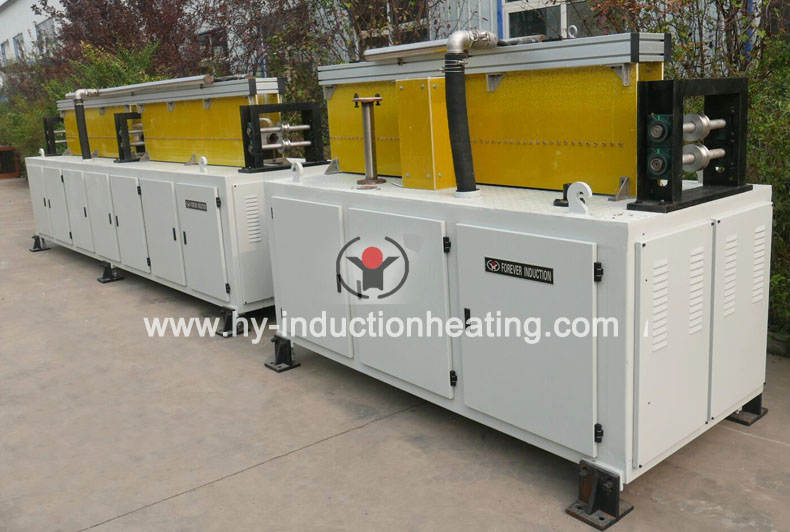

Aluminum billet heating furnace for extrusion
Features:
| Product name | Aluminum billet heating furnace for extrusion |
| Brand | Yuantuo |
| Application | Heating before aluminum shear or extrusion |
Product Detail
Application Video
Product Tags
Foever aluminum billet heating furnace for extrusion is especially used for aluminum billet heating before extrusion or shear. Much experience has make our technology for aluminum billet heating become more and more mature. Welcome to contact us for inquiry.
Technical parameters for Aluminum billet heating furnace for extrusion
| Product name | Aluminum billet heating furnace for extrusion |
| Aluminum bar diameter | Ø200mm |
| Aluminum bar length | 250mm |
| Heating temperature | 450-500℃ |
| Production capacity | One minute for one billet (Ø200mm x 250mm) |
| Heating method | Continuously go through the coil |
| Control way | Automatically temperature adjustment |
Aluminum billet heating furnace for extrusion solution
|
1 |
Aluminum billet storage platform |
|
1 Set |
|
2 |
Automatic feeder |
|
1 Set |
|
3 |
IF power supply |
450KW/300HZ |
1 Set |
|
4 |
Induction heater |
GTRø200*L |
1 Set |
|
5 |
Infrared thermometer |
Including display meter |
1 Set |
|
6 |
Product manual |
|
|
Our digital IF power supply for Aluminum billet heating furnace for extrusio
● Digital constant power control system (control line highly integrated)
● Various protection functions (overcurrent, overvoltage, water pressure, phase loss, undervoltage, overload)
● Low failure rate, easy maintenance
● Long-term work without temperature drift, stable operating point
● Adjust curve is smooth, high linearity, without any impact
● Adjust the power as per load change, energy saving.
The protection of the power supply includes:
● Main circuit short circuit protection
● Main circuit phase loss protection
● High voltage protection
● Low voltage protection
● Cooling low water pressure protection
● SCR over-voltage protection
● CR overcurrent protection
● Water temperature alarm device
Specialist of billet heating furnace and system in China; Glad to be your business partner in induction heating field.
