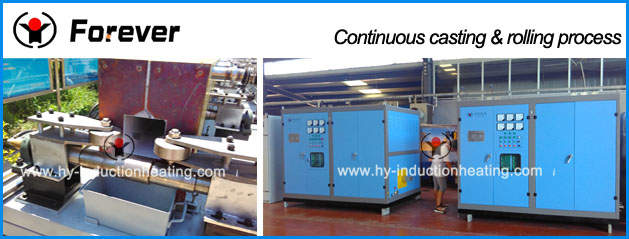

Billet heating furnace for continuous casting and rolling
Features:
| Billet size | 120*120mm2; 150*150mm2 |
| Billet length | 11.5-12.5m |
| Billet initial Temp. | ≥950℃ |
| Increasing to: | ≥1150℃±20℃ |
Product Detail
Application Video
Product Tags
Forever has rich experience in designing and manufacturing billet heating furnace for continuous casting and rolling. The control system can automatically adjust the heating temperature and running speed, and one worker can operate the whole billet heating furnace for continuous casting and rolling.
Technical parameters for Billet heating furnace for continuous casting and rolling
| Product name | Billet heating furnace for continuous casting and rolling |
| Brand | Forever |
| Billet size | 120*120mm2; 150*150mm2 |
| Billet length | 11.5-12.5m |
| Billet temperature after discharging CCM | ≥950℃ |
| Billet temperature for rolling mill: | ≥1150℃±20℃ |
| Capacity for 120*120 | 90 ton/h |
| Capacity for 150*150 | 70 ton/h |
Supply scope for Billet heating furnace for continuous casting and rolling
| No. | Machine name | Quantity |
| 1 | Double rectification MF power supply | 1 Set |
| 2 | MF Capacitor | 1 Set |
| 3 | Induction billet heater | 1 Set |
| 4 | Water cooling cables | 1 Set |
| 5 | Remote console | 1 Set |
| 6 | Frequency conversion motor speed reducer | 1 Set |
| 7 | Infra Red Pyrometer(High Temp.Type) | 1 Set |
| 8 | Automatic control system | 1 Set |
Features of Billet heating furnace for continuous casting and rolling
1.MF power supply:reliable,power saving, low distortion, high efficiency, tin copper bar, water pipe is made of stainless steel.
2.Induction heating furnace:Both ends of the furnace body are sealed with the whole purple copper plate, and the base plate is made of high strength aluminum alloy.
3.Connection cable:Electrical connection power supply cabinet to furnace.
4.Capacitor:Enclosed, stainless steel water pipe.
5.Remote control box: Siemens PLC can control billet temperature automatically.
6.When the billet induction heater is no-load working,the system will reduce to the Min. power,when the billet is charging into induction heater, the device will increase to Max.power to work,which can reduce the power consumption greatly.
7.Infra Red Pyrometer:Non contact type Infra Red Pyrometer can measure temperature of billet at the exit side.
Advantages of Billet heating furnace for continuous casting and rolling
1.Heating fast and uniform.
2.Power saving 10% or above:Less harmonics, high power factor, load output voltage is high, the load coil current is low,small power consumption.
3.100% successful starting.Reliable frequent starting is available.
4.Easy installation & commission and simple operation.
5.Safe and reliable.Perfect protections for long life performance and very safe for operators. Automatic protections for water temperature,water pressure,phase shortage,overcurrent and undervoltage.
High reliability:Adopt famous brand components which reduce fault rate and make sure the equipment can run reliably.
Specialist of billet heating furnace and system in China; Glad to be your business partner in induction heating field.
