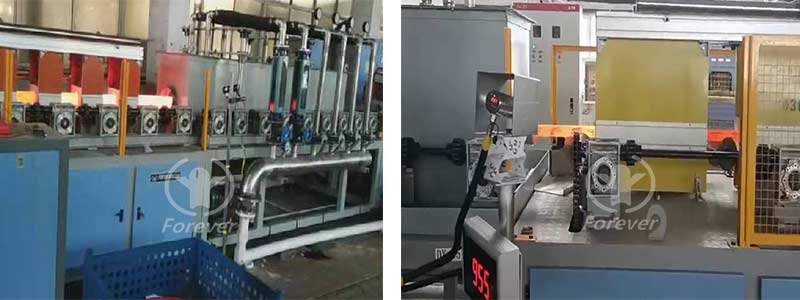

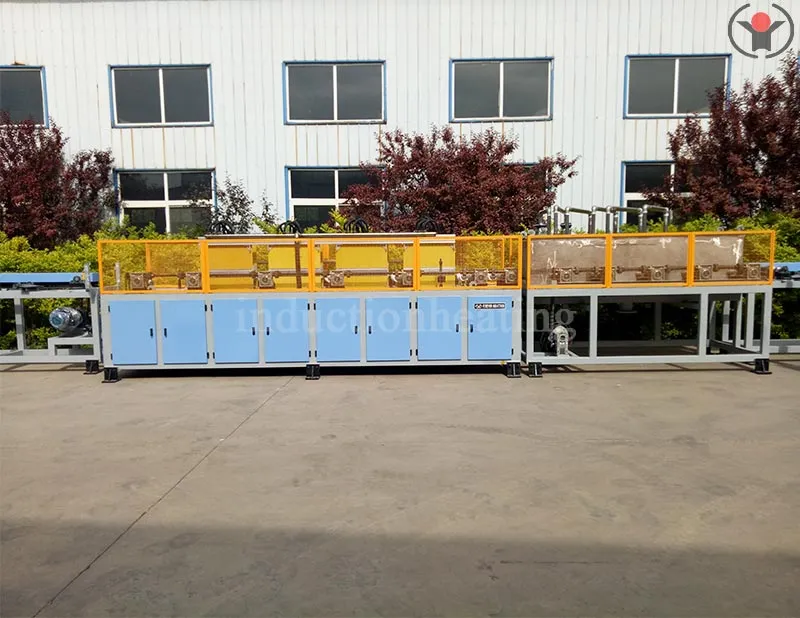

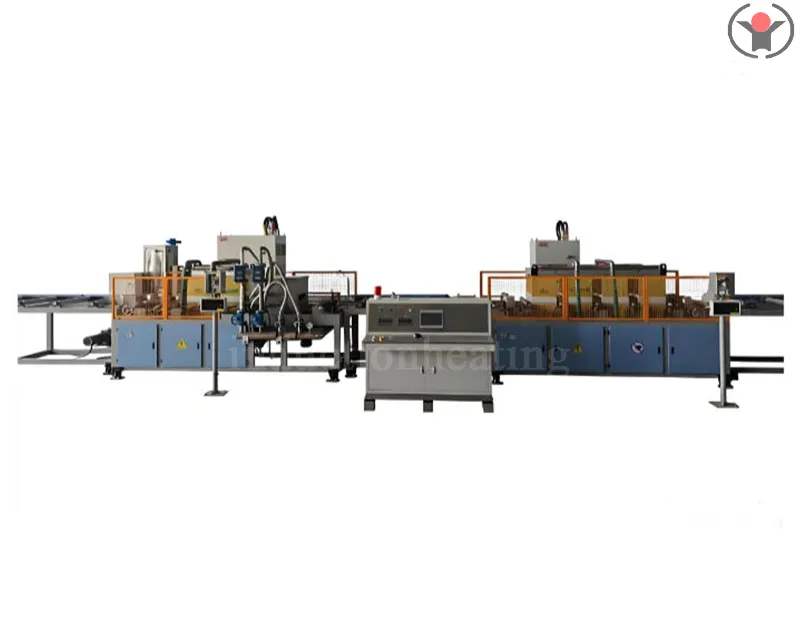

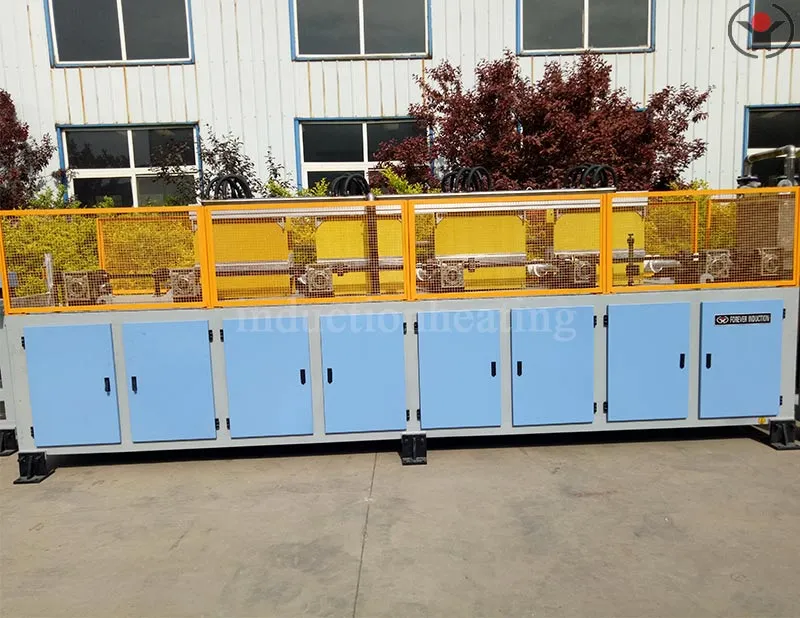

Rod and wire heating equipment:

[Control System] [Production Capacity] 10-15t/h PLC Intelligent Electronic Control [Part I]: Q235, Q345, Q460A, 16Mn, 25MnB, 30MnB, 60Mn, and 80 # High Carbon Steel [Energy Conversion]: Heating each ton of steel to 1050 ° C, consuming 310-330 kWh of electricity

Equipment power

4000KW-6000KW

Forever Electromechanical Equipment Manufacturing Co., Ltd. specializes in the production of bar and wire heating equipment. For 22 years, the industry has been focusing on the production of bar rolling heating furnaces, with quality assurance, energy conservation, environmental protection, and leading technology. The profile heating furnace adopts a new energy-saving air-cooled induction heating power supply control, with low power consumption and high production efficiency. It is recommended to purchase high-quality medium frequency induction heating equipment from Hebei Yuantuo Electromechanical.

Main features of rod and wire heating equipment:

1. Adopting IGBT solid-state inverter technology, it is efficient and energy-saving, and the output power of the bar rolling heating furnace is high.

2. Full load design, the rod and wire heating equipment can work continuously for 24 hours.

3. Digital phase-locked technology enables automatic frequency tracking.

4. Modular design, easy installation, and convenient operation of rod and wire heating equipment.

5. The rod and wire heating equipment has complete protection functions and high reliability.

6. The resonant frequency conversion technology is adopted to achieve a total efficiency of 95% for the heating furnace of rod, wire and profile, with high efficiency.

7. The PLC with human-machine interface fully automatic intelligent control of the bar rolling heating furnace has high production efficiency.

8. The bars processed by the bar rolling heating furnace have no deformation, no cracking phenomenon, and strong plasticity.

Usage conditions and user provided parts of rod and wire heating equipment:

1. Connect the 380V three-phase four wire power supply 120KVA-1000KVA and the power supply cable to the power supply. (Transformers are matched and selected based on the power of the workpiece equipment)

2. The rod and wire heating equipment must be grounded: it is recommended to use galvanized pipes to be driven underground and reliably connected to the equipment. The connecting wires should be made of copper wires larger than 10 square meters. The power supply, furnace body, and control panel are all separately equipped with grounding wires.

3. Cooling of bar rolling heating furnace (according to the user's site, there are specialized technicians to provide on-site guidance)

When the indoor temperature at the production site is below 5 degrees Celsius in winter, it is recommended to heat the workshop or add antifreeze to the equipment cooling system.

5. The bar heating furnace provides the dimensions of the storage and receiving racks based on the user's terrain location (the supplier provides drawings)

Layout and technical documents of bar rolling heating furnace:

1. The heating furnace for rods, wires, and profiles does not require special treatment of the ground foundation, and the main surface can be a flat cement floor.

2. The distance between the heating furnace for wire rods and profiles and the wall and other immovable objects should be greater than 800mm, and should be kept away from flammable and explosive materials.

3. The rod and wire heating equipment is equipped with a certificate of qualification for the intermediate frequency power supply, an instruction manual for the intermediate frequency power supply, and worker operation instructions, allowing you to have no worries about the use of our rod and wire heating equipment.

Acceptance of bar rolling heating furnace:

1. The device is undergoing pre acceptance at Yuantuo Company. (Users can directly come to the factory for on-site acceptance of the operation of the bar rolling heating furnace. If satisfactory results are achieved, the initial acceptance is successful and it will be sent to the user's site for free.)

2. During the installation and commissioning period, Party A shall provide free operation and maintenance training to Party B's operation and maintenance personnel, so that the trainees can understand the technical performance, operation methods, and maintenance techniques of the device. The operation of the bar rolling heating furnace is simple and can be learned in just a few minutes. We have a complete set of instructions, certificates of conformity, and maintenance manuals for the bar heating equipment. You don't have to worry about how to solve problems with the medium frequency induction heating equipment.

3. The final acceptance shall be conducted at the buyer's site in accordance with relevant national and industry standards, as well as the provisions of the contract agreement. The acceptance contents include configuration, stability of the control system, stability of the pneumatic and mechanical parts, appearance, burning performance and efficiency, etc. (It will definitely meet your satisfaction requirements for the products produced)
