Steel Wire Heating Furnace

Features:

1.Induction heating power: DSP+IGBT Intelligent induction heating power,saving energy 10%-15% ,no pollution.

2.Process monitoring screen and Data logging and Archiving

3.Application:Heat Treatment and Heating for many kinds of metal parts,no matter the part size.

Inquiry Email Skype

Product Detail

Application Video

Product Tags

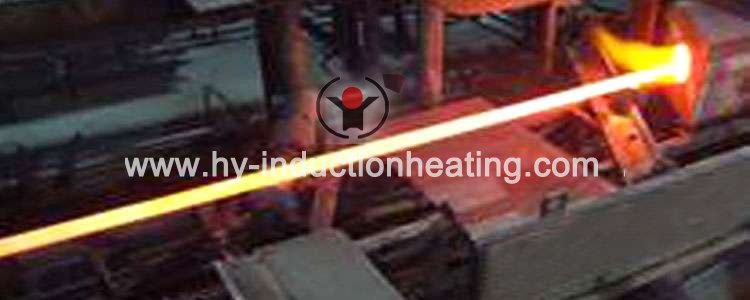

Steel Wire Heating Furnace for induction heating steel wire & rod

YuanTuo company is the high-tech enterprise which is one of the leaders who earlier involved in the design and manufacturing of induction heating equipment.With mature induction heating technology,Forever company owns a group of experienced and innovative professional personnel to offer you good service.

Processing Technology and Technical Parameters

1.Steel wire tapping temperature: 1000℃

2.Steel range material need to be heated:Carbon steel,alloy steel

3.Steel wire heating capacity: 22t/h ;meet the requirement of 5 meters per second.

4.Steel wire Max. Camber before charging to the furnace:≤3mm/M

5.Temperature before sending wire to the furnace:Room temperature

6.Steel wire dimension:Ø14mm*L

7.The electricity consumption is 330 degree per ton if heating from room temperature to 1000℃.Our conservative design is 7500KW power,which include five electric furnaces.

Power Type	Quantity	Working Mode	Transformer	Quantity
KGPS3000KW/1000Hz	1set	Six phase 12 pulse rectifier	3500KVA	1set
KGPS2500KW/1500Hz	1set	Six phase 12 pulse rectifier	3150KVA	1set
KGPS1000KW/2000Hz	1set	Six phase 12 pulse rectifier	1250KVA	1set
KGPS500KW/4000Hz	1set	Three phase 6 pulse rectifier	630KVA	1set
IGBT500KW/20000Hz	1set	Three phase 6 pulse rectifier	630 KVA	1 set

Equipment Technical Features

1. The control loop use the forth control board (single board) and the key components are imported . The whole number and no-relay control loop make the system running stable and reliable.

2. High successful starting rate.

3.Small harmonic wave but high power factory.

4.There are over current,over voltage,less voltage,lacking phase and water pressure protections to make sure the equipment running smoothly.

5.Total rated output power is 7500KW.

6.Large power is 6 phases 12 pulse,low power is three phase.

7.It is very easy to operate the equipment so the maintenance charge is low.
